4.3.22. Bluetooth Driver Debug Guide

The X5 EVB development board uses the RTL8852BS module, which supports Wi-Fi and Bluetooth functions.
- For debugging Wi-Fi functionality of the RTL8852BS module, refer to Wi-Fi Driver Debug Guide.
- The Bluetooth module interface is a UART interface, supporting H4 and Three-wire (H5) protocols.

4.3.22.1. Overview

This chapter mainly describes the adaptation and usage methods of Bluetooth, using the RealTek (Realtek) series UART Bluetooth RTL8852BS as an example.
Main contents include: schematic confirmation, kernel configuration, DTS configuration, Bluetooth usage, and common issues.

4.3.22.2. RealTek RTL8852BS Porting

Schematic Confirmation

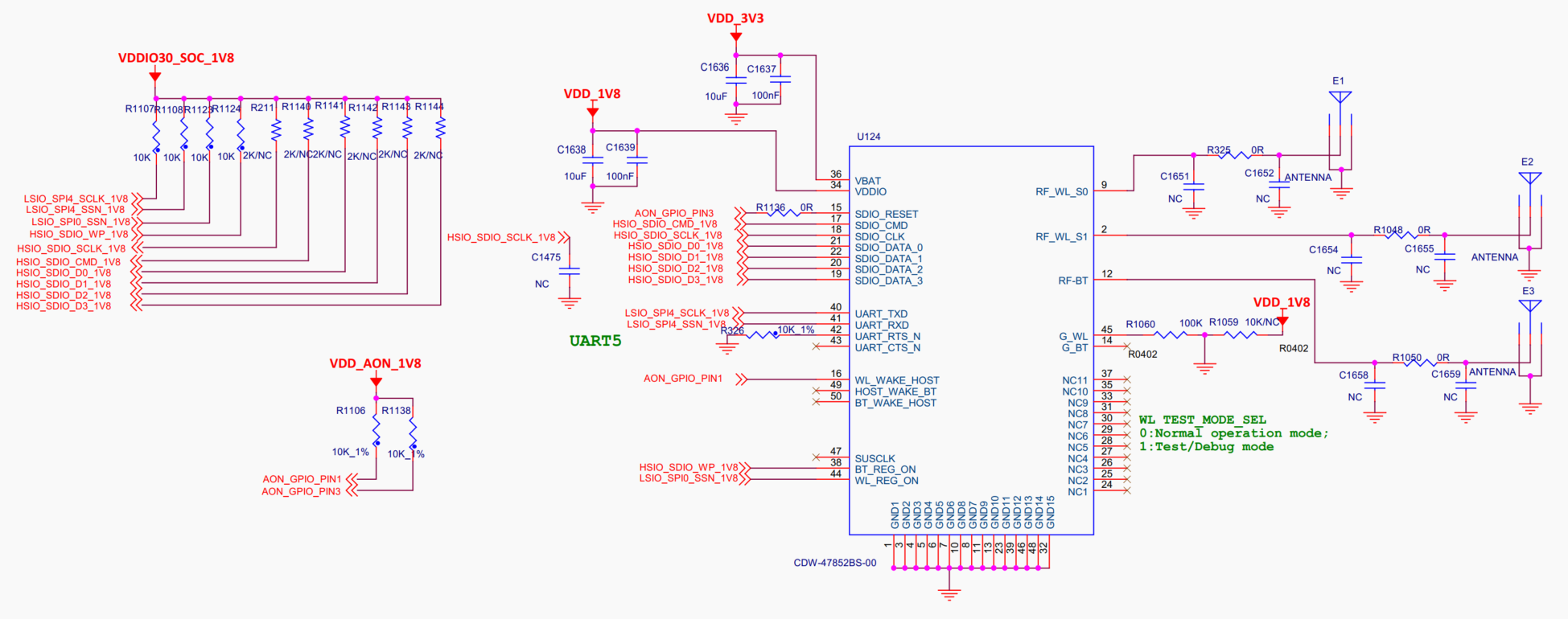

Partial schematics of the X5 RTL8852BS are shown below:

For the RTL8852BS Bluetooth module to operate properly, the hardware must meet the following conditions:

Power supply: The module has two power supplies, where VDD_3V3 is the main power supply and VDD_1V8 is the IO pull-up power supply.
Enable: For normal operation, a high level must be applied to BT_REG_ON. Currently, the hardware is pulled high at power-on, so no configuration is needed in the device tree.
Clock: The 40MHz clock input can be internally generated by the module, so no external signal input is required.
Communication: Bluetooth communication is via UART, with UART_TXD and UART_RXD being the two data lines of the UART.

Note:
1. To maintain interface and functional diversity, the EVB does not connect flow control for the Bluetooth UART interface. In product design, it is recommended to connect flow control; otherwise, audio transmission may suffer from stuttering or degraded audio quality.

Kernel Configuration

Enter the BSP’s build directory and execute ./xbuild.sh boot menuconfig to configure kernel features.

Configuration Command

Executing ./xbuild.sh boot menuconfig launches a text-based menu interface. Navigate the menu using the arrow keys on the keyboard. Press Enter to enter submenus or modify configuration options. After completing the configuration, select the Save menu item to save your settings.

Configuration Options

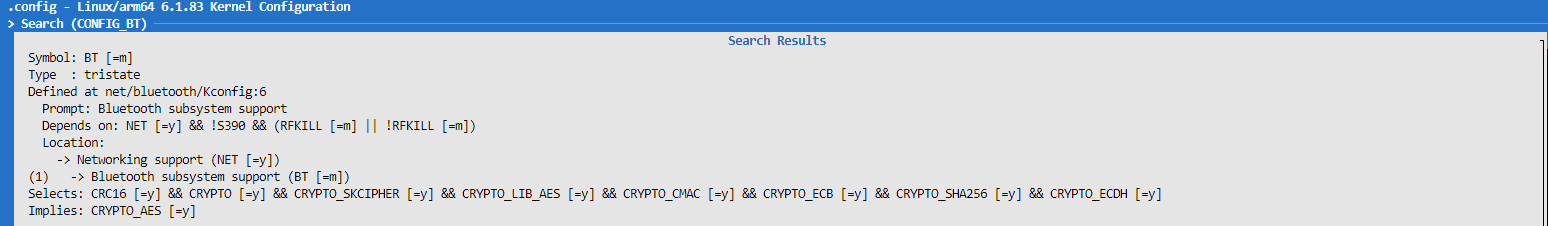

Option 1: Configure kernel option CONFIG_BT=m

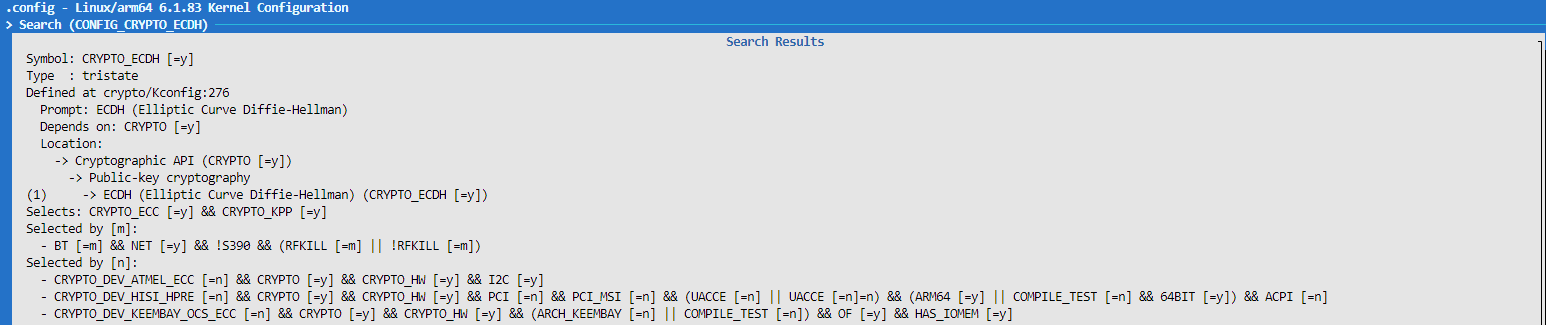

Option 2: Configure kernel option CONFIG_CRYPTO_ECDH=y

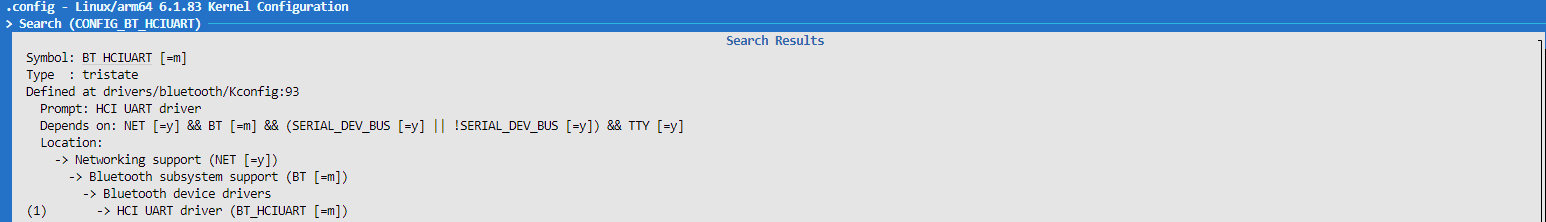

Option 3: Configure kernel option CONFIG_BT_HCIUART=m

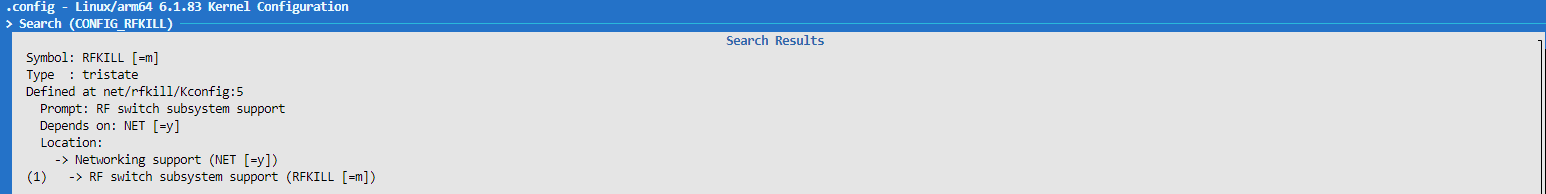

Option 4: Configure kernel option CONFIG_RFKILL=m

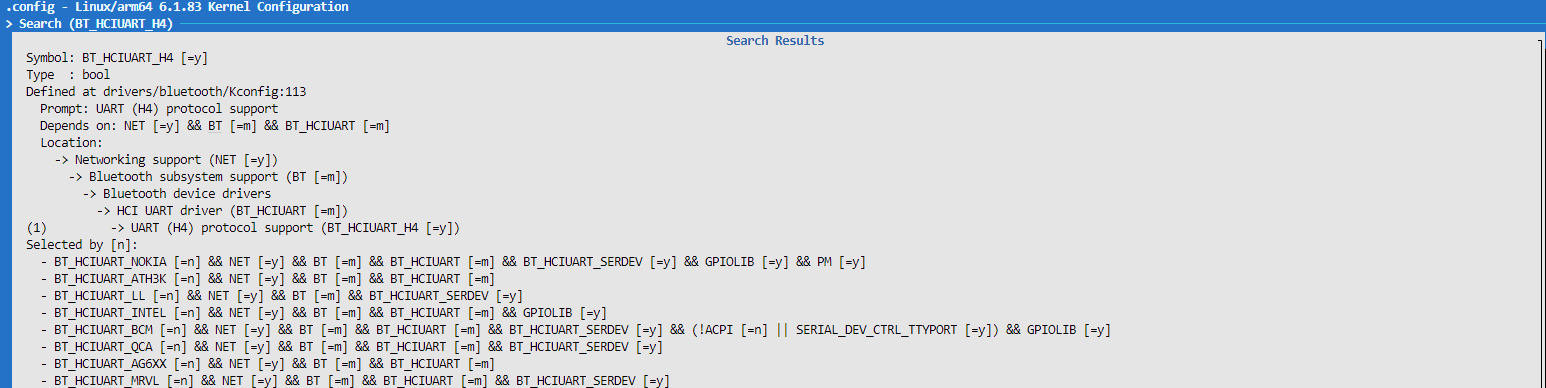

Option 5: Configure kernel option BT_HCIUART_H4=y

DTS Configuration

Confirm DTS Configuration

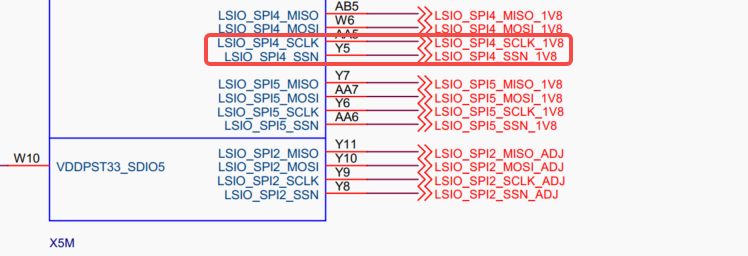

Confirm which UART controller the RTL8852BS Bluetooth is using, as follows:

Based on the schematic connection and the device tree pinmux-func.dtsi, the pin LSIO_SPI4_SCLK corresponds to the pin multiplexing configuration pinctrl_uart5.

pinctrl_uart5: uart5grp {
	horizon,pins = <
		LSIO_SPI4_SCLK  LSIO_PINMUX_2 BIT_OFFSET0  MUX_ALT2 &pconf_drv_pu_ds2_1v8
		LSIO_SPI4_SSN   LSIO_PINMUX_2 BIT_OFFSET2  MUX_ALT2 &pconf_drv_pu_ds2_1v8
	>;
};

Further check the x5.dtsi file for the pinctrl_uart5 node configuration, confirming that the controller used is serial@341a0000, labeled as uart5.

uart5: serial@341a0000 {
    compatible = "snps,dw-apb-uart";
    status = "disabled";
    reg = <0x341a0000 0x10000>;
    reg-shift = <2>;
    clocks = <&hpsclks X5_LSIO_UART5_CLK>,
            <&hpsclks X5_LSIO_UART5_PCLK>;
    clock-names = "clk","apb_pclk";
    interrupt-parent = <&gic>;
    interrupts = <GIC_SPI 70 IRQ_TYPE_LEVEL_HIGH>;
    resets = <&socrst LSIO_UART5_RESET>;
    broken-auto-flow-control;
    pinctrl-names = "default";
    pinctrl-0 = <&pinctrl_uart5>;
    dw-uart,dma-cyclic;
};

To make the controller serial@341a0000 work properly, simply reference the &uart5 label in the board-level DTS configuration and set status = "okay";.
```
&uart5 {
    status = "okay";
};
```

Compile and Flash

After saving the configuration, recompile the kernel image with ./mk_boot.sh, then flash boot.img using fastboot.exe flash boot boot.img.
Then use adb to upload hci_uart.ko, bluetooth.ko, btrtl.ko, and rfkill.ko to the file system. For adb usage, refer to Using adb.

Driver Loading and Debugging

1. Confirm Pin Multiplexing Configuration

After entering the system, use the hb_gpioinfo command to check whether the pin multiplexing configurations for LSIO_SPI4_SCLK and LSIO_SPI4_SSN in the schematic are correct.
Confirm that the result shows the function as uart5grp, indicating correct configuration.
Below is a partial output example of the hb_gpioinfo command:

gpiochip4 - 32 lines: @34120000.gpio: @379-410
    [Number]                [Mode]  [Status]  [GpioName]       [PinName]          [PinNum]   [PinFunc]
    line  0:        unnamed input                             LSIO_UART7_RX         379      lsio_gpio0_0
    line  1:        unnamed input                             LSIO_UART7_TX         380      lsio_gpio0_1
    ......
    line 28:        unnamed input                             LSIO_SPI4_SCLK        407      uart5grp
    line 29:        unnamed input                             LSIO_SPI4_SSN         408      uart5grp

2. Load Drivers

Use insmod to load the required drivers for the RTL8852BS Bluetooth module.
- Use insmod rfkill.ko to load the wireless device management module.
- Use insmod bluetooth.ko to load the Bluetooth core protocol stack module.
- Use insmod btrtl.ko to load the Realtek Bluetooth firmware loading module, used to initialize the Realtek Bluetooth chip firmware.
- Use insmod hci_uart.ko to load the HCI UART driver module, enabling communication with Bluetooth hardware via serial port.

Initialization Program Compilation and Firmware Configuration

Program Compilation

For UART-interface Bluetooth, Realtek provides the rtk_hciattach tool to initialize the Bluetooth controller.

Modify the Makefile to specify the toolchain CROSS_COMPILE for the X5 platform.

git diff Makefile
diff --git a/Makefile b/Makefile
index 207f808..d24dcf6 100755
--- a/Makefile
+++ b/Makefile
@@ -1,4 +1,5 @@
CFLAGS := -Wall -g
+CROSS_COMPILE := /opt/arm-gnu-toolchain-11.3.rel1-x86_64-aarch64-none-linux-gnu//bin/aarch64-none-linux-gnu-

1. The Bluetooth module initialization process requires loading firmware files. For UART interfaces, the firmware directory can be defined in rtb_fwc.c. The default paths are as follows:
```
#define FIRMWARE_DIRECTORY "/lib/firmware/rtlbt/"
#define BT_CONFIG_DIRECTORY "/lib/firmware/rtlbt/"
```
1. After executing make, the executable rtk_hciattach is generated.
1. Use adb to upload the cross-compiled rtk_hciattach to the target board’s file system at /usr/bin/.
1. Use adb to upload the Bluetooth firmware and configuration files rtl8852bs_config and rtl8852bs_fw obtained from the vendor to the target board’s file system at /lib/firmware/rtlbt/.

Note:
1. For Realtek UART Bluetooth modules, compile the `rtk_hciattach` binary from the source code provided by Realtek; avoid using the `hciattach` compiled from BlueZ.

4.3.22.3. FCS960K Porting

Schematic and Compile/Flash

Refer to the FCS960K porting section in the Wi-Fi Driver Debug Guide for information on schematics, kernel configuration, DT configuration, and compilation/flashing.

Initialization Program

The FCS960K Bluetooth module is registered using the following command:

hciattach -s 1500000 /dev/ttyS5 any 1500000 noflow

4.3.22.4. Bluetooth Usage

Status Confirmation

The complete initialization process for both FCS960K and RTL8852BS Bluetooth is integrated into the /etc/init.d/bt_init.sh script.

Before running, check if the following files exist on the current device.

Initialization programs to confirm:

/usr/bin/rtk_hciattach
/usr/bin/hciattach

Firmware configurations to confirm:

/lib/firmware/rtlbt/rtl8852bs_config
/lib/firmware/rtlbt/rtl8852bs_fw

BlueZ programs to confirm:

/usr/bin/dbus-daemon
/usr/bin/bluetoothctl
/usr/bin/hciattach
/usr/bin/hcitool
/bin/hciconfig
/usr/bin/hcitool

Execute cd /lib/modules/$(uname -r) to navigate to the kernel module directory and confirm the driver modules:

kernel/drivers/bluetooth/btrtl.ko
kernel/drivers/bluetooth/hci_uart.ko
kernel/net/rfkill/rfkill.ko
kernel/net/bluetooth/bluetooth.ko

Initialization

Execute /etc/init.d/bt_init.sh to complete RTL8852BS Bluetooth initialization.

Note: The Bluetooth initialization script can only be executed once.

Pairing and Connection

The following steps describe how to complete Bluetooth device pairing and connection via the bluetoothctl interactive interface.

1. Enter Bluetooth Configuration Interface

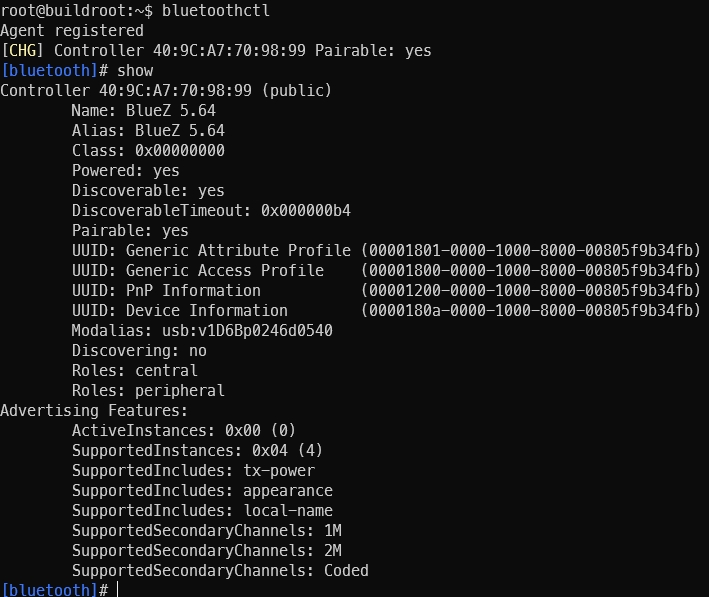

Run bluetoothctl to enter interactive mode. The system will display the MAC address of the Bluetooth controller and its current state (usually pairable).
Run show to view detailed Bluetooth information, focusing on the powered and discoverable states.

2. Enable Bluetooth Function

Run power on to enable Bluetooth.

3. Set Bluetooth to Discoverable Mode

Run discoverable on to make the Bluetooth device discoverable by nearby devices.

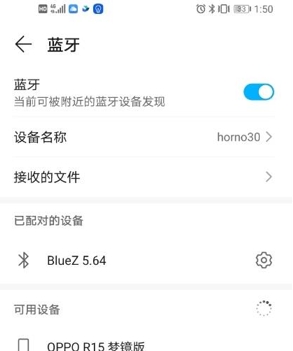

At this point, scanning with a phone or computer will reveal a Bluetooth device named BlueZ 5.64.

4. Scan Nearby Bluetooth Devices

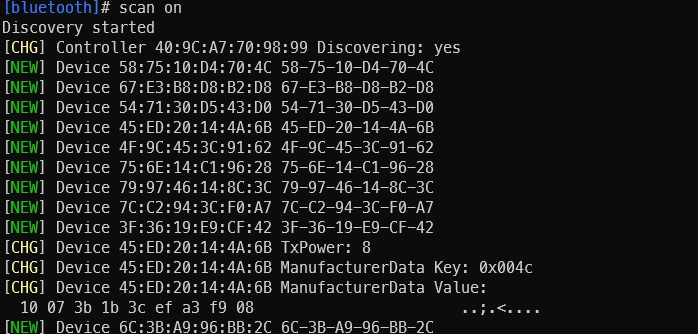

Run scan on to start active scanning; the system will periodically display nearby Bluetooth devices.

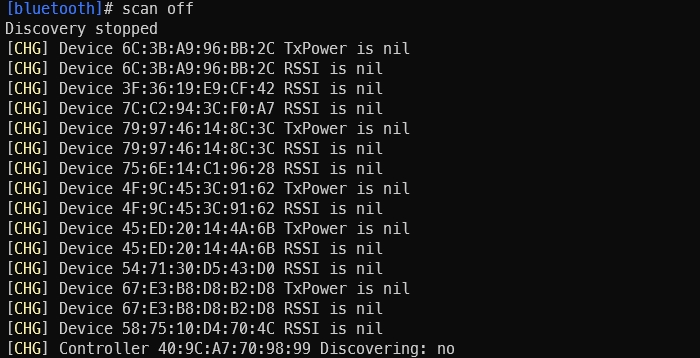

Run scan off to stop scanning and summarize the discovered devices.

5. Pair with Other Bluetooth Devices

Proceed to pair with other Bluetooth devices:

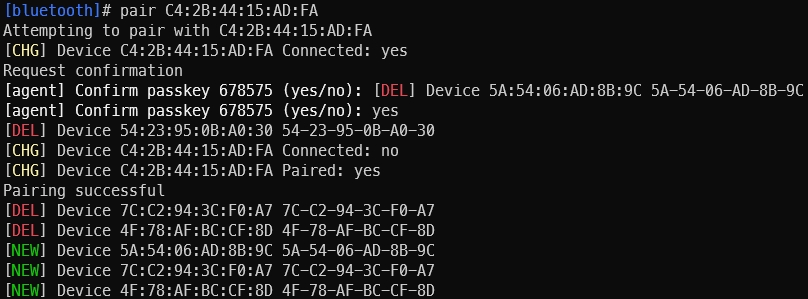

Run pair [targetMAC] to initiate pairing. Confirm with yes when prompted and confirm pairing on the peer device.

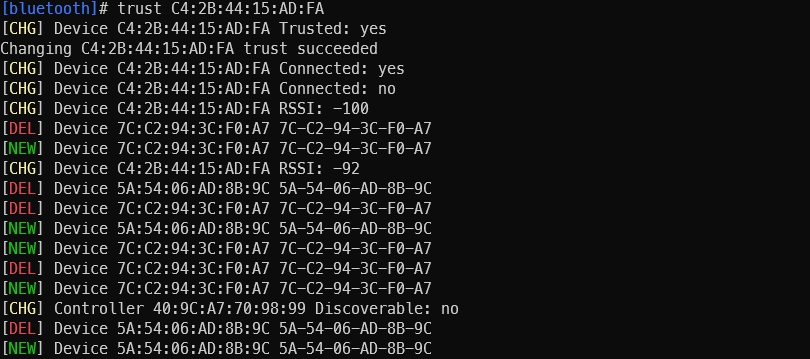

After successful pairing, run trust [targetMAC] so the device will automatically pair on next connection.

6. Test Bluetooth Device Connection

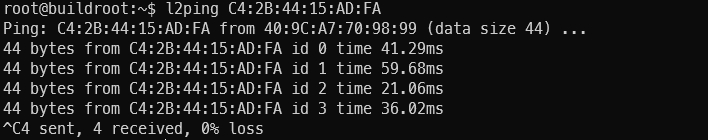

Use the l2ping command to test Bluetooth network connectivity.

Summary

Through the above steps, you have completed Bluetooth device scanning, pairing, and connection testing. For more features, refer to the official documentation on the BlueZ website.

4.3.22.5. Common Issues

Bluetooth initialization fails when executing `/etc/init.d/bt_init.sh`

1. Initialization failure due to unloaded driver

Phenomenon: Bluetooth serial protocol (HCI UART) fails during initialization.

Realtek Bluetooth ERROR: Can't set line discipline 22, Invalid argument
Realtek Bluetooth ERROR: Can't initialize devicce 22, Invalid argument

Analysis: The hci_uart driver was not loaded.
Solution: Load the driver using modprobe hci_uart, then re-execute /etc/init.d/bt_init.sh for Bluetooth initialization.

2. Initialization failure due to incorrect firmware

Phenomenon: During data transmission, the Bluetooth device encounters sequence errors or packet loss.

Realtek Bluetooth :Enable host hw flow control
Realtek Bluetooth :h5_hci_reset: Issue hci reset cmd
Realtek Bluetooth ERROR: Out-of-order packet arrived, got(7)expected(0)
Realtek Bluetooth ERROR: Out-of-order packet arrived, got(7)expected(0)

Analysis: Firmware with Bluetooth hardware flow control enabled was used, but the hardware design does not connect flow control.
Solution: Obtain firmware without flow control enabled from the vendor, then re-execute /etc/init.d/bt_init.sh for Bluetooth initialization.

Default Bluetooth Name and Modification Method

In Ubuntu file systems, the default name is ubuntu; in Buildroot file systems, the default name is BlueZ X.YZ, where X.YZ corresponds to the BlueZ version number.
To change the default Bluetooth name, modify the Name field under [General] in the configuration file /etc/bluetooth/main.conf.
```
[General]
Name = hobot
```
