5.6. Video Input - VIN

5.6.1. Module Description

The VIN module is part of the HBN framework, containing 4 MIPI RX and 4 SIF interfaces.
As a Vnode within the HBN framework, the VIN module can be connected with other Vnodes to form a Vflow.
For supported parameter specifications of VIN, please refer to the MIPI Basic Specifications section.

5.6.1.1. VIN Use Cases

VIN supports both Offline and Online connections to the ISP module, where the ISP module’s Pipeline is time-division multiplexed.

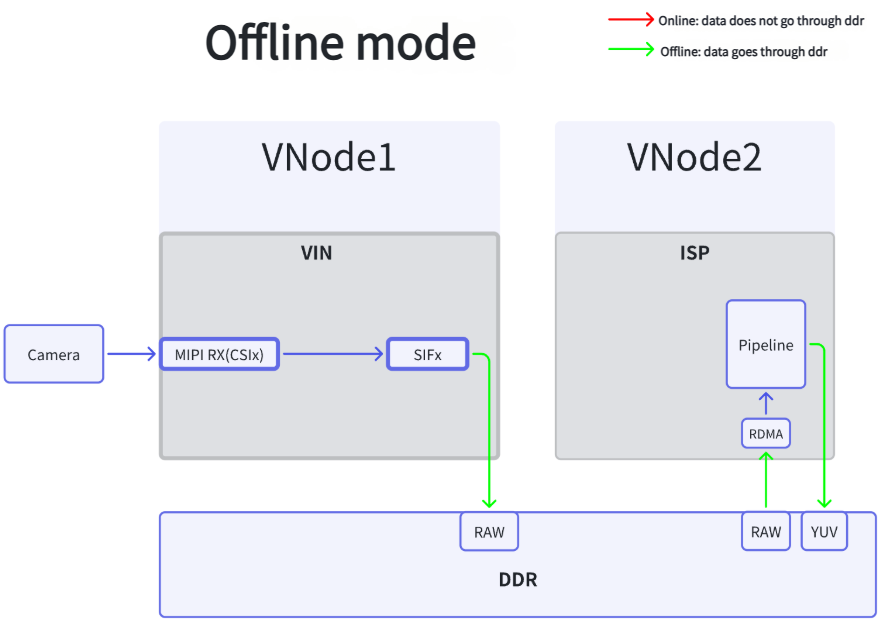

Offline Mode: Camera connects to ISP via VIN in Offline mode.

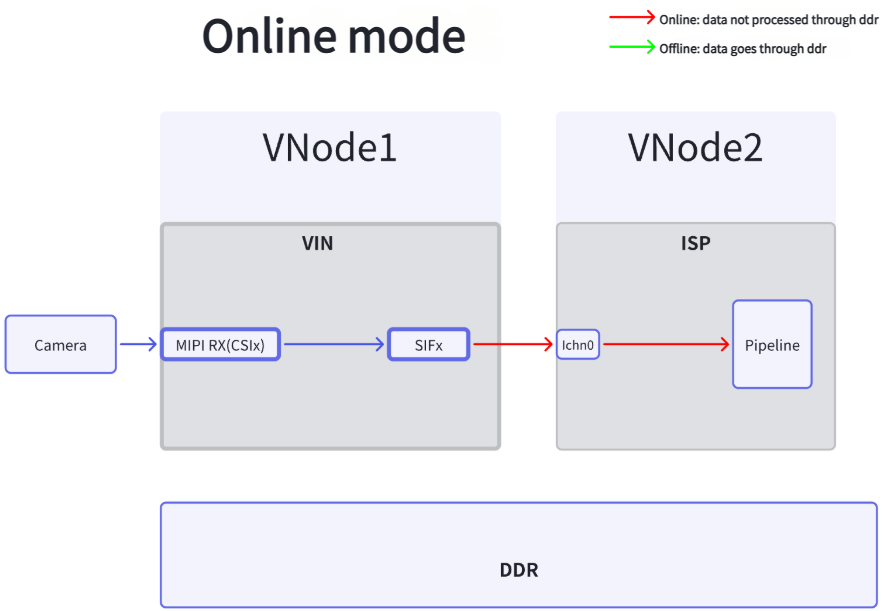

Online Mode: Camera connects to ISP via VIN in Online mode.

5.6.1.2. Scenario Recommendations

For single Camera Sensor scenarios: prefer Online mode for the connection from VIN to ISP; Offline mode is also supported.
For multi-camera Sensor scenarios: only Offline mode is supported for the connection from VIN to ISP.

Note: When an HDR sensor is connected, the VIN-ISP connection must use online mode. Since online mode exclusively occupies the ISP resource, only 1 stream is supported.

5.6.2. Reference Examples

Example code for VIN integration can be found in the sample_vin section.

5.6.3. API Reference

API Interface	Interface Functionality
hbn_vnode_open	Open vnode
hbn_vnode_close	Close vnode
hbn_vnode_set_attr	Set vnode attributes
hbn_vnode_set_ochn_attr	Set output channel attributes of VIN vnode
hbn_vnode_get_ochn_attr	Get output channel attributes of VIN vnode
hbn_vnode_set_ichn_attr	Set input channel attributes of VIN vnode
hbn_vnode_get_ichn_attr	Get input channel attributes of VIN vnode
hbn_vnode_set_ochn_buf_attr	Set output buffer attributes of VIN vnode
hbn_vnode_start	Start vnode
hbn_vnode_stop	Stop vnode
hbn_vnode_getframe	Retrieve frame data from vnode
hbn_vnode_sendframe	Send frame data into vnode
hbn_vnode_releaseframe	Release frame data

5.6.4. Interface Descriptions

5.6.4.1. hbn_vnode_open

【Function Declaration】

hobot_status hbn_vnode_open(hb_vnode_type vnode_type, uint32_t hw_id, int32_t ctx_id, hbn_vnode_handle_t *vnode_fd);

【Function Description】

Initialize the vnode, open the vnode device node, and return the vnode handle for this module.

【Parameter Description】

[IN] hb_vnode_type vnode_type: Type of vnode; for VIN, use HB_VIN
[IN] uint32_t hw_id: Hardware ID of the module; for VIN, hw_id is 0
[IN] int32_t ctx_id: Context ID of the module, a software concept. Can be specified explicitly or set to AUTO_ALLOC_ID, allowing the HBN framework to assign automatically
[OUT] hbn_vnode_handle_t *vnode_fd: Returns the vnode handle of the module

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.2. hbn_vnode_close

【Function Declaration】

void hbn_vnode_close(hbn_vnode_handle_t vnode_fd);

【Function Description】

Close the device node of the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module

【Return Value】

None

【Notes】

Must be used in pair with hbn_vnode_open.

【Compatibility】

Hardware: X5

5.6.4.3. hbn_vnode_set_attr

【Function Declaration】

hobot_status hbn_vnode_set_attr(hbn_vnode_handle_t vnode_fd, void *attr);

【Function Description】

Set basic attributes of the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] void *attr: Pointer to the attribute structure of the module; for VIN, the structure is vin_attr_t

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.4. hbn_vnode_set_ochn_attr

【Function Declaration】

hobot_status hbn_vnode_set_ochn_attr(hbn_vnode_handle_t vnode_fd, uint32_t ochn_id, void *attr);

【Function Description】

Set output channel attributes of the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ochn_id: Output channel ID of the module
[IN] void *attr: Pointer to the output channel attribute structure; for VIN, the structure is vin_ochn_attr_t

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.5. hbn_vnode_get_ochn_attr

【Function Declaration】

hobot_status hbn_vnode_get_ochn_attr(hbn_vnode_handle_t vnode_fd, uint32_t ochn_id, void *attr);

【Function Description】

Get output channel attributes of the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ochn_id: Output channel ID of the module
[OUT] void *attr: Pointer to the output channel attribute structure; for VIN, the structure is vin_ochn_attr_t

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.6. hbn_vnode_set_ichn_attr

【Function Declaration】

hobot_status hbn_vnode_set_ichn_attr(hbn_vnode_handle_t vnode_fd, uint32_t ichn_id, void *attr);

【Function Description】

Set input channel attributes of the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ichn_id: Input channel ID of the module
[IN] void *attr: Pointer to the input channel attribute structure; for VIN, the structure is vin_ichn_attr_t

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.7. hbn_vnode_get_ichn_attr

【Function Declaration】

hobot_status hbn_vnode_get_ichn_attr(hbn_vnode_handle_t vnode_fd, uint32_t ichn_id, void *attr);

【Function Description】

Get input channel attributes of the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ichn_id: Input channel ID of the module; for VIN, the input channel is 0
[OUT] void *attr: Pointer to the input channel attribute structure; for VIN, the structure is vin_ichn_attr_t

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.8. hbn_vnode_set_ochn_buf_attr

【Function Declaration】

hobot_status hbn_vnode_set_ochn_buf_attr(hbn_vnode_handle_t vnode_fd, uint32_t ochn_id,
                     hbn_buf_alloc_attr_t *alloc_attr);

【Function Description】

Set output channel buffer attributes, including the number of buffers and whether buffer addresses are contiguous.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ochn_id: Output channel ID of the module
[IN] hbn_buf_alloc_attr_t *alloc_attr: Buffer allocation attributes

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.9. hbn_vnode_start

【Function Declaration】

hobot_status hbn_vnode_start(hbn_vnode_handle_t vnode_fd);

【Function Description】

Start the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

The module must be opened before starting.

【Compatibility】

Hardware: X5

5.6.4.10. hbn_vnode_stop

【Function Declaration】

hobot_status hbn_vnode_stop(hbn_vnode_handle_t vnode_fd);

【Function Description】

Stop the module.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.11. hbn_vnode_getframe

【Function Declaration】

hobot_status hbn_vnode_getframe(hbn_vnode_handle_t vnode_fd, uint32_t ochn_id, uint32_t millisecondTimeout,
                hbn_vnode_image_t *out_img);

【Function Description】

Retrieve image from the module’s output channel; this is a blocking interface.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ochn_id: Output channel ID of the module
[IN] uint32_t millisecondTimeout: Timeout duration in milliseconds
[OUT] hbn_vnode_image_t *out_img: Pointer to the output image buffer structure

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.12. hbn_vnode_sendframe

【Function Declaration】

hobot_status hbn_vnode_sendframe(hbn_vnode_handle_t vnode_fd, uint32_t ichn_id,
                 hbn_vnode_image_t *img);

【Function Description】

Send an image to the module’s input channel, triggering the module to process it. This is a blocking interface that waits for hardware processing to complete before returning, with a default timeout of 1 second.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ichn_id: Input channel ID of the module; for VIN, the input channel is 0
[IN] hbn_vnode_image_t *img: Pointer to the input image buffer

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.4.13. hbn_vnode_releaseframe

【Function Declaration】

hobot_status hbn_vnode_releaseframe(hbn_vnode_handle_t vnode_fd, uint32_t ochn_id, hbn_vnode_image_t *img);

【Function Description】

Release the image buffer, returning it to the specified output channel.

【Parameter Description】

[IN] hbn_vnode_handle_t vnode_fd: The vnode handle of the module
[IN] uint32_t ochn_id: Output channel ID of the module
[IN] hbn_vnode_image_t *img: Pointer to the image buffer structure

【Return Value】

Success: returns HBN_STATUS_SUCCESS (0)
Failure: negative error code; refer to Return Value Description

【Notes】

None

【Compatibility】

Hardware: X5

5.6.5. Data Structures

5.6.5.1. vin_attr_t

Name	Type	Min	Max	Default	Meaning	Required
`vin_node_attr`	`vin_node_attr_t`	-	-	-	VIN node attribute description	Yes
`vin_attr_ex`	`vin_attr_ex_t`	-	-	-	Enhanced VIN node attribute description	Yes
`vin_ochn_attr[]`	`vin_ochn_attr_t`	-	-	-	Output channel attribute description of VIN node	Yes
`vin_ichn_attr`	`vin_ichn_attr_t`	-	-	-	Input channel attribute description of VIN node	Yes
`vin_ochn_buff_attr[]`	`vin_ochn_buff_attr_t`	-	-	-	Output buffer attribute description of VIN node	Yes

5.6.5.2. vin_node_attr_t

Name	Type	Min	Max	Default	Meaning	Required
`cim_attr`	`cim_attr_t`	-	-	-	CIM/SIF attribute description	Yes
`lpwm_attr`	`lpwm_attr_t`	-	-	-	LPWM attribute description, used for multi-sensor synchronization	No
`vcon_attr`	`vcon_attr_t`	-	-	-	VCON attribute description	No
`flow_id`	`uint32_t`	0	-	-	Pipeline ID, optional	No

5.6.5.3. cim_attr_t

Name	Type	Min	Max	Default	Meaning	Required
`mipi_en`	`uint32_t`	0	1	0	Enable MIPI; reserved field, currently not required to configure	No
`mipi_rx`	`uint32_t`	0	4	0	mipi rx port number	Yes
`vc_index`	`uint32_t`	0	4	0	mipi virtual index	Yes
`ipi_channel`	`uint32_t`	1	2	0	ipi channel number,	Yes
					linear mode is 1,
					hdr dol2 mode is 2
`tpg_input`	`cim_input_tpg_t`	-	-	-	Reserved for future use	No
`func`	`cim_func_desc_t`	-	-	-	Advanced functions of cim/sif	Yes

5.6.5.4. cim_func_desc_t

Name	Type	Min	Max	Default	Description	Required
`enable_frame_id`	`uint32_t`	0	1	0	Enable frame id	No
`set_init_frame_id`	`uint32_t`	0	-	0	Initial value assignment for frame id	No
`time_stamp_en`	`uint32_t`	-	-	-	Enable timestamp	No
`time_stamp_mode`	`uint32_t`	1	8	-	sif/cim timestamp latching type, select one of the following:	No
					0x01: latch tv at frame start
					0x02: latch trig_tv at sensor exposure trigger
					0x03: latch both tv and trig_tv, recommended
					Others: reserved
`ts_src`	`uint32_t`	0	12	0	Source that triggers sif to latch the timestamp	No
					0: trig_tv and tv timestamps disabled
					1: LPWM0_CHN0 rising edge latches tv and trig_tv
					2: LPWM0_CHN1 rising edge latches tv and trig_tv
					3: LPWM0_CHN2 rising edge latches tv and trig_tv
					4: LPWM0_CHN3 rising edge latches tv and trig_tv
					5: LPWM1_CHN0 rising edge latches tv and trig_tv
					6: LPWM1_CHN1 rising edge latches tv and trig_tv
					7: LPWM1_CHN2 rising edge latches tv and trig_tv
					8: LPWM1_CHN3 rising edge latches tv and trig_tv
					9: ENET_PTP reserved, not to be used
					10: SW reserved, not to be used
					11: MCU reserved, not to be used
					12: GPS reserved, not to be used
`pps_src`	`uint32_t`	-	-	-	Reserved, not to be used	No
`enable_pattern`	`uint32_t`	-	-	-	Reserved, not to be used	No
`skip_frame`	`cim_skip_type_e`	0	4	0	Software skip frame mode, takes effect during pipeline initialization	No
					0 (`CIM_DISABLE_SKIP`): skip frame disabled
					1 (`CIM_IN_RATIO_SKIP`): ratio-based skip frame, requires `input_fps` and `output_fps`
					2 (`CIM_FIRST_FRAMES_SKIP`): discard the first N frames
					3 (`CIM_HW_SKIP`): hardware skip frame
`input_fps`	`uint32_t`	1	-	0	Input frame rate, i.e. actual sensor frame rate. Required when `skip_frame` = 1	No
`output_fps`	`uint32_t`	1	-	0	Desired output frame rate, must be less than `input_fps`. Required when `skip_frame` = 1	No
					Uses Bresenham algorithm to drop frames evenly in SIF DONE interrupt
					Example: `input_fps`=30, `output_fps`=1 means keeping only 1 frame out of 30fps
`skip_nums`	`uint32_t`	-	-	-	Reserved, not to be used	No
`hw_extract_m`	`uint32_t`	-	-	-	Reserved, not to be used	No
`hw_extract_n`	`uint32_t`	-	-	-	Reserved, not to be used	No
`hdr_mode`	`enum hdr_mode`	0	2	0	Set value as enum hdr_mode:	Yes
					0: No multi-frame synthesis required by SoC ISP
					1: Two-frame synthesis required on SoC side
					2: Three-frame synthesis required on SoC side (reserved, not supported by X5)

5.6.5.5. vin_attr_ex_t

Set VIN extended attributes via hbn_vnode_set_attr_ex, supporting both static configuration and runtime dynamic modification. Each call requires setting ex_attr_type to specify the operation type.

Name	Type	Min	Max	Default	Description	Required
`ex_attr_type`	`vin_attr_ex_type_e`	-	-	-	extended attribute type, determines which field takes effect	Yes
					`VIN_STATIC_CIM_ATTR` (0): CIM static attributes
					`VIN_DYNAMIC_FPS_CTRL` (2): runtime dynamic frame rate control
					`VIN_STATIC_MCLK_ATTR` (7): MCLK frequency configuration
`cim_static_attr`	`cim_static_attr_t`	-	-	-	CIM static attributes, effective when `ex_attr_type` = 0	No
`fps_ctrl`	`dynamic_fps_t`	-	-	-	dynamic frame rate control, effective when `ex_attr_type` = 2	No
`mclk_ex_attr`	`mclk_attr_ex_t`	-	-	-	MCLK extended attributes, effective when `ex_attr_type` = 7	No
`vin_attr_ex_mask`	`uint64_t`	-	-	0	attribute mask during initialization, bit positions correspond to `ex_attr_type` enum values	No

5.6.5.6. dynamic_fps_t

Runtime frame rate control structure, used with hbn_vnode_set_attr_ex and ex_attr_type = VIN_DYNAMIC_FPS_CTRL. Frame rate can be modified at any time while the pipeline is running, taking effect on the next frame immediately.

Name	Type	Min	Max	Default	Description	Required
`skip_mode`	`cim_skip_type_e`	0	4	0	skip frame mode	Yes
					0 (`CIM_DISABLE_SKIP`): skip frame disabled, restore original sensor frame rate
					1 (`CIM_IN_RATIO_SKIP`): ratio-based skip frame
`in_fps`	`uint32_t`	1	-	0	input frame rate (actual sensor frame rate), required when `skip_mode` = 1	Yes
`out_fps`	`uint32_t`	1	-	0	desired output frame rate, must be less than `in_fps`, required when `skip_mode` = 1	Yes
					Uses Bresenham algorithm to drop frames evenly in SIF DONE interrupt
					Example: `in_fps`=30, `out_fps`=10 means output 10fps

Usage example (static configuration - during pipeline initialization):

vin_node_attr_t vin_node_attr;
vin_node_attr.cim_attr.func.skip_frame = CIM_IN_RATIO_SKIP;  // 1
vin_node_attr.cim_attr.func.input_fps  = 30;   // actual sensor frame rate
vin_node_attr.cim_attr.func.output_fps = 10;   // desired output 10fps
hbn_vnode_set_attr(vin_node_handle, &vin_node_attr);

Usage example (dynamic modification - while pipeline is running):

vin_attr_ex_t vin_attr_ex = {0};
vin_attr_ex.ex_attr_type = VIN_DYNAMIC_FPS_CTRL;
vin_attr_ex.fps_ctrl.skip_mode = CIM_IN_RATIO_SKIP;  // ratio-based skip frame
vin_attr_ex.fps_ctrl.in_fps  = 30;   // actual sensor frame rate
vin_attr_ex.fps_ctrl.out_fps = 10;   // desired output 10fps
hbn_vnode_set_attr_ex(vin_node_handle, &vin_attr_ex);

// disable skip frame, restore original frame rate
vin_attr_ex.fps_ctrl.skip_mode = CIM_DISABLE_SKIP;
vin_attr_ex.fps_ctrl.in_fps  = 0;
vin_attr_ex.fps_ctrl.out_fps = 0;
hbn_vnode_set_attr_ex(vin_node_handle, &vin_attr_ex);

5.6.5.7. vin_ochn_attr_t

Name	Type	Min	Max	Default	Description	Required
`ddr_en`	`uint32_t`	0	1	0	Whether data is written to DDR	Yes
`roi_en`	`uint32_t`	-	-	-	Reserved	No
`emb_en`	`uint32_t`	-	-	-	Reserved, whether sensor embedded data is written to DDR	No
`ochn_attr_type`	`vin_ochn_attr_type_e`	-	-	-	vin ochn attribute VIN_BASIC_ATTR, // Default, basic vin attribute VIN_EMB_ATTR, // sensor with emb output	Yes
`vin_basic_attr`	`vin_basic_attr_t`	-	-	-	vin basic attribute, required for writing to DDR	Yes
`rawds_attr`	`vin_rawds_attr_t`	-	-	-	Reserved	No
`roi_attr`	`vpm_commn_roi_data_desc`	-	-	-	Reserved	No
`emb_attr`	`vin_emb_attr_t`	-	-	-	Reserved, required if emb is used	No

5.6.5.8. vin_basic_attr_t

Name	Type	Min	Max	Default	Description	Required
`pack_mode`	`uint32_t`	-	-	-	Reserved	No
`wstride`	`uint32_t`	0	-	-	Wide stride for cim/sif writing to DDR, aligned to 16 bytes.	Yes
					For sensor raw8: width, for raw10~raw16: 2*width
`vstride`	`uint32_t`	-	-	-	Reserved	No
`format`	`uint32_t`	-	-	-	Must be set when writing to DDR	Yes

5.6.5.9. vin_ichn_attr_t

Name	Type	Min	Max	Default	Description	Required
`format`	`uint32_t`	-	-	-	vin format, sensor output format	Yes
`width`	`uint32_t`	0	8192	0	Sensor output resolution width in pixels	Yes
`height`	`uint32_t`	0	4096	0	Sensor output resolution height in pixels	Yes

5.6.5.10. vin_ochn_buff_attr_t

Name	Type	Min	Max	Default	Description	Required
`buffers_num`	`uint32_t`	0	-	0	Number of buffers for cim/sif writing to DDR, typically set to 6	Yes
`flags`	`int64_t`	-	-	-	Typically set in code: hbn_buf_alloc_attr_t.flags = HB_MEM_USAGE_CPU_READ_OFTEN OR HB_MEM_USAGE_CPU_WRITE_OFTEN OR HB_MEM_USAGE_CACHED	No

5.6.5.11. lpwm_attr_t

Name	Type	Min	Max	Default	Description	Required
`enable`	`uint32_t`	0	-	0	Whether to enable LPWM	No
`lpwm_chn_attr_t lpwm_chn_attr[LPWM_CHN_NUM]`	-	-	-	-	LPWM channel attribute configuration LPWM_CHN_NUM value is 4	No

5.6.5.12. lpwm_chn_attr_t

Name	Type	Min	Max	Default	Description	Required	Output 30Hz, high level 10us parameters
`trigger_source`	`uint32_t`	0	10	0	Trigger source selection 0-3: pad_trigger_in, hardware IO input PPS 4: enet_ptp_pps, reserved 5: sw_trigger_in, software trigger 6: gps_trigger_in (TIME_SYNC2), hardware IO input PPS 7: mcu_trigger_in (TIME_SYNC1), hardware IO input PPS 8: time_sync2_in (TIME_SYNC3), hardware IO input PPS 9: time_sync3_in (TIME_SYNC4), hardware IO input PPS 10: camera_1sec_pulse_out, reserved Note: Refer to pinlist document for corresponding hardware IO pins.	No
`trigger_mode`	`uint32_t`	0	1	0	Trigger mechanism (1 - external hardware trigger, 0 - internal software trigger)	No
					When trigger_mode is set to 0, it automatically uses software trigger and trigger_source can be left unselected
`period`	`uint32_t`	2 us	1000000 us	0	Period, actual effective period is (period + 1)us	No	33332
`offset`	`uint32_t`	0	(1000000/period) us	0	After source triggers LPWM, LPWM outputs square wave after offset(us).	No	11
					Effective time: floor((1/24) * (offset * 24 + 3)) us
`duty_time`	`uint32_t`	0	(4096/period) us	0	High-level active duration, actual effective time is (duty_time + 1)us	No	9
`threshold`	`uint32_t`	0	65535 us	0	Threshold for slow synchronization function	No	0
`adjust_step`	`uint32_t`	0	15	0	Adjustment step per iteration: adjust_time = 2 ^ adjust_step	No	0

5.6.6. Return Value Description

Error Code	Macro Definition	Description	Common Causes and Solutions
0	HBN_STATUS_SUCESS	Success
1	HBN_STATUS_INVALID_NODE	Invalid vnode, corresponding vnode not found
2	HBN_STATUS_INVALID_NODETYPE	Invalid vnode type, corresponding vnode not found	For VIN, vnode type should be HB_VIN
3	HBN_STATUS_INVALID_HWID	Invalid hardware module ID	For VIN, hw_id value is 0
4	HBN_STATUS_INVALID_CTXID	Invalid context ID	Can be set to AUTO_ALLOC_ID, automatically assigned by HBN framework
5	HBN_STATUS_INVALID_OCHNID	Invalid output channel ID	VIN output channel is 0
6	HBN_STATUS_INVALID_ICHNID	Invalid input channel ID	VIN supports only one input channel
7	HBN_STATUS_INVALID_FORMAT	Invalid format
8	HBN_STATUS_INVALID_NULL_PTR	Null pointer
9	HBN_STATUS_INVALID_PARAMETER	Invalid parameter, version check failed
10	HBN_STATUS_ILLEGAL_ATTR	Invalid parameter
11	HBN_STATUS_INVALID_FLOW	Invalid flow, corresponding flow not found
12	HBN_STATUS_FLOW_EXIST	Flow already exists
13	HBN_STATUS_FLOW_UNEXIST	Flow does not exist
14	HBN_STATUS_NODE_EXIST	Node already exists
15	HBN_STATUS_NODE_UNEXIST	Node does not exist
16	HBN_STATUS_NOT_CONFIG	Reserved
17	HBN_STATUS_CHN_NOT_ENABLED	Channel not enabled
18	HBN_STATUS_CHN_ALREADY_ENABLED	Channel already enabled
19	HBN_STATUS_ALREADY_BINDED	Node already bound
20	HBN_STATUS_NOT_BINDED	Node not bound
21	HBN_STATUS_TIMEOUT	Timeout
22	HBN_STATUS_NOT_INITIALIZED	Not initialized
23	HBN_STATUS_NOT_SUPPORT	Channel not supported or not activated
24	HBN_STATUS_NOT_PERM	Operation not allowed
25	HBN_STATUS_NOMEM	Insufficient memory
26	HBN_STATUS_INVALID_VNODE_FD	Invalid node file descriptor
27	HBN_STATUS_INVALID_ICHNID_FD	Invalid input channel file descriptor
28	HBN_STATUS_INVALID_OCHNID_FD	Invalid output channel file descriptor
29	HBN_STATUS_OPEN_OCHN_FAIL	Failed to open output channel
30	HBN_STATUS_OPEN_ICHN_FAIL	Failed to open input channel
31	HBN_STATUS_JSON_PARSE_FAIL	JSON parsing failed
32	HBN_STATUS_REQ_BUF_FAIL	Failed to request buffer
33	HBN_STATUS_QUERY_BUF_FAIL	Failed to query buffer information
34	HBN_STATUS_SET_CONTROL_FAIL	Failed to set module control or adjustment parameters (e.g., ISP effect parameters)
35	HBN_STATUS_GET_CONTROL_FAIL	Failed to get module control or adjustment parameters (e.g., ISP effect parameters)
36	HBN_STATUS_NODE_START_FAIL	Failed to start node
37	HBN_STATUS_NODE_STOP_FAIL	Failed to stop node
38	HBN_STATUS_NODE_POLL_ERROR	Node channel poll error
39	HBN_STATUS_NODE_POLL_TIMEOUT	Node channel poll timeout
40	HBN_STATUS_NODE_POLL_FRAME_DROP	Frame drop occurred during node channel poll
41	HBN_STATUS_NODE_POLL_HUP	Descriptor hang-up during node channel poll
42	HBN_STATUS_NODE_ILLEGAL_EVENT	Illegal event during node channel poll
43	HBN_STATUS_NODE_DEQUE_ERROR	Error in dequeueing buffer from node channel
44	HBN_STATUS_ILLEGAL_BUF_INDEX	Invalid buffer index
45	HBN_STATUS_NODE_QUE_ERROR	Error in queueing buffer to node channel
46	HBN_STATUS_FLUSH_FRAME_ERROR	Error in flushing frames from node channel
47	HBN_STATUS_INIT_BIND_ERROR	Error occurred during JSON parsing and binding
48	HBN_STATUS_ADD_NODE_FAIL	Failed to add node to flow
49	HBN_STATUS_WRONG_CONFIG_ID	System does not support the node ID
50	HBN_STATUS_BIND_NODE_FAIL	Error occurred when binding node to flow
51	HBN_STATUS_INVALID_VERSION	Mismatch between underlying driver module and upper-layer library version numbers
52	HBN_STATUS_GET_VERSION_ERROR	Error in getting underlying driver module version number
53	HBN_STATUS_MEM_INIT_FAIL	hbmem memory initialization failed
54	HBN_STATUS_MEM_IMPORT_FAIL	hbmem memory import failed
55	HBN_STATUS_MEM_FREE_FAIL	hbmem memory release failed
56	HBN_STATUS_SYSFS_OPEN_FAIL	System file open failed
57	HBN_STATUS_STRUCT_SIZE_NOT_MATCH	HAL layer structure size does not match kernel layer
58	HBN_STATUS_RGN_UNEXIST	Unable to retrieve corresponding rgn data
59	HBN_STATUS_RGN_INVALID_OPERATION	Invalid rgn operation
60	HBN_STATUS_RGN_OPEN_FILE_FAIL	Failed to open file in rgn module
128	HBN_STATUS_ERR_UNKNOW	Unknown error
