SPI 接口
接口介绍
SPI（Serial Peripheral Interface，串行外设接口）提供高速同步串行通信能力，通过时钟线（SCK）、数据输入线（MISO）、数据输出线（MOSI）及片选线（CS）实现主控设备与外部器件之间的数据传输。该接口具有通信速率高、传输效率优、硬件结构简单等特点，广泛应用于存储芯片、显示模块、传感器及各类高速外设连接场景。
案例目标
通过 SPI 接口控制屏幕显示。
设备清单
- RDK X5 开发板
- SPI 屏幕

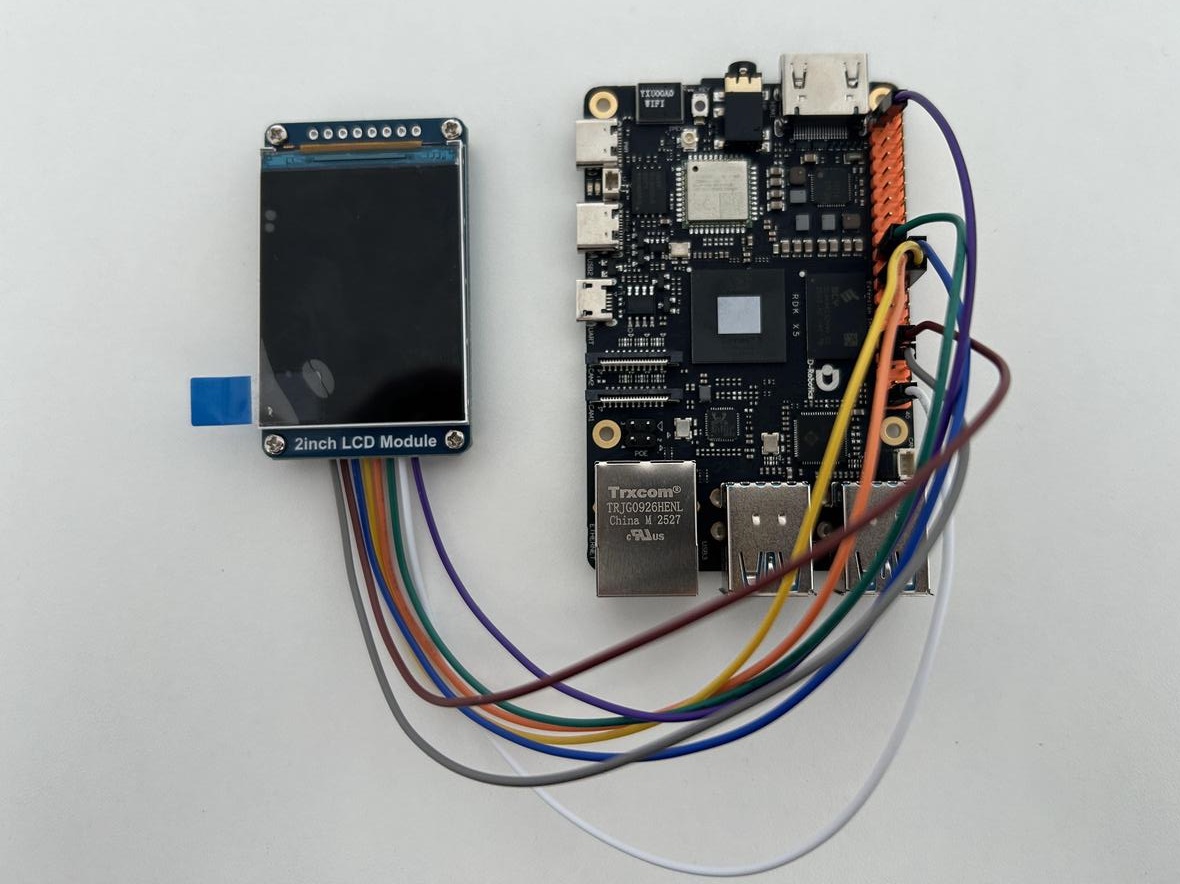

硬件连接
接口说明
| 接口名称 | VCC | GND | DIN/MOSI | CLK/SCLK | CS | DC | RST | BL |
|---|---|---|---|---|---|---|---|---|
| 功能 | 电源 | 地 | SPI 数据 | SPI 时钟 | 片选 | 命令 | 复位 | 背光 |
| 板端接口 | 1 | 39 | 19 | 23 | 24 | 22 | 31 | 33 |
40PIN 管脚定义
案例代码
创建 spi_display.py 文件，在 spi_display.py 文件中粘贴以下代码：
#!/usr/bin/env python3
"""Light up a 2.0-inch 240x320 SPI LCD on the RDK X5 40-pin header.
Default wiring:
DIN -> BOARD 19 / SPI1_MOSI
CLK -> BOARD 23 / SPI1_SCLK
CS -> BOARD 24 / SPI1_CSN1 (/dev/spidev1.1)
DC -> BOARD 22
RST -> BOARD 31
BL -> BOARD 33
"""
from __future__ import annotations
import argparse
import math
import time
from typing import Iterable
import Hobot.GPIO as GPIO
import spidev
from PIL import Image, ImageDraw, ImageFont
RGB565_BLACK = b"\x00\x00"
class ST7789:
def __init__(
self,
*,
bus: int,
device: int,
width: int,
height: int,
dc_pin: int,
rst_pin: int,
bl_pin: int | None,
x_offset: int,
y_offset: int,
speed_hz: int,
spi_mode: int,
rotation: int,
bgr: bool,
invert: bool,
) -> None:
self.width = width
self.height = height
self.x_offset = x_offset
self.y_offset = y_offset
self.dc_pin = dc_pin
self.rst_pin = rst_pin
self.bl_pin = bl_pin
self.rotation = rotation % 360
self.bgr = bgr
self.invert = invert
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BOARD)
GPIO.setup(self.dc_pin, GPIO.OUT, initial=GPIO.LOW)
GPIO.setup(self.rst_pin, GPIO.OUT, initial=GPIO.HIGH)
if self.bl_pin is not None:
GPIO.setup(self.bl_pin, GPIO.OUT, initial=GPIO.HIGH)
self.spi = spidev.SpiDev()
self.spi.open(bus, device)
self.spi.mode = spi_mode
self.spi.bits_per_word = 8
self.spi.max_speed_hz = speed_hz
def close(self) -> None:
self.spi.close()
def hard_reset(self) -> None:
GPIO.output(self.rst_pin, GPIO.HIGH)
time.sleep(0.02)
GPIO.output(self.rst_pin, GPIO.LOW)
time.sleep(0.05)
GPIO.output(self.rst_pin, GPIO.HIGH)
time.sleep(0.12)
def command(self, cmd: int, data: Iterable[int] | bytes = b"", delay: float = 0) -> None:
GPIO.output(self.dc_pin, GPIO.LOW)
self.spi.xfer2([cmd & 0xFF])
if data:
GPIO.output(self.dc_pin, GPIO.HIGH)
payload = bytes(data)
for start in range(0, len(payload), 4096):
self.spi.writebytes2(payload[start : start + 4096])
if delay:
time.sleep(delay)
def init(self) -> None:
self.hard_reset()
self.command(0x36, [self._madctl()])
self.command(0x3A, [0x05]) # 16-bit RGB565 (Waveshare 2inch)
# 颜色反相：0x21 开启、0x20 关闭。不同屏幕型号要求不同，偏色时切换 --invert。
self.command(0x21 if self.invert else 0x20)
self.command(0x2A, [0x00, 0x00, 0x01, 0x3F])
self.command(0x2B, [0x00, 0x00, 0x00, 0xEF])
self.command(0xB2, [0x0C, 0x0C, 0x00, 0x33, 0x33])
self.command(0xB7, [0x35])
self.command(0xBB, [0x1F])
self.command(0xC0, [0x2C])
self.command(0xC2, [0x01])
self.command(0xC3, [0x12])
self.command(0xC4, [0x20])
self.command(0xC6, [0x0F])
self.command(0xD0, [0xA4, 0xA1])
self.command(0xE0, [0xD0, 0x08, 0x11, 0x08, 0x0C, 0x15, 0x39, 0x33, 0x50, 0x36, 0x13, 0x14, 0x29, 0x2D])
self.command(0xE1, [0xD0, 0x08, 0x10, 0x08, 0x06, 0x06, 0x39, 0x44, 0x51, 0x0B, 0x16, 0x14, 0x2F, 0x31])
self.command(0x11, delay=0.12) # Sleep out
self.command(0x29, delay=0.02) # Display on
self.clear()
def _madctl(self) -> int:
# MY MX MV ML BGR MH 0 0
value = 0x08 if self.bgr else 0x00
if self.rotation == 0:
value |= 0x00
elif self.rotation == 90:
value |= 0x60
elif self.rotation == 180:
value |= 0xC0
elif self.rotation == 270:
value |= 0xA0
else:
raise ValueError("rotation must be one of 0, 90, 180, 270")
return value
def set_window(self, x0: int, y0: int, x1: int, y1: int) -> None:
x0 += self.x_offset
x1 += self.x_offset
y0 += self.y_offset
y1 += self.y_offset
self.command(0x2A, [(x0 >> 8) & 0xFF, x0 & 0xFF, (x1 >> 8) & 0xFF, x1 & 0xFF])
self.command(0x2B, [(y0 >> 8) & 0xFF, y0 & 0xFF, (y1 >> 8) & 0xFF, y1 & 0xFF])
self.command(0x2C)
def clear(self, color: bytes = RGB565_BLACK) -> None:
self.set_window(0, 0, self.width - 1, self.height - 1)
GPIO.output(self.dc_pin, GPIO.HIGH)
line = color * self.width
for _ in range(self.height):
self.spi.writebytes2(line)
def show(self, image: Image.Image) -> None:
if image.size != (self.width, self.height):
image = image.resize((self.width, self.height), Image.Resampling.LANCZOS)
payload = rgb888_to_rgb565(image.convert("RGB"))
self.set_window(0, 0, self.width - 1, self.height - 1)
GPIO.output(self.dc_pin, GPIO.HIGH)
for start in range(0, len(payload), 4096):
self.spi.writebytes2(payload[start : start + 4096])
def rgb888_to_rgb565(image: Image.Image) -> bytes:
out = bytearray(image.width * image.height * 2)
i = 0
for r, g, b in image.getdata():
value = ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3)
out[i] = (value >> 8) & 0xFF
out[i + 1] = value & 0xFF
i += 2
return bytes(out)
def load_image(path, width, height):
image = Image.open(path)
# 转 RGB
image = image.convert("RGB")
# 缩放到LCD大小
image = image.resize(
(width, height),
Image.Resampling.LANCZOS
)
return image
def load_font(size: int) -> ImageFont.ImageFont:
for path in (
"/usr/share/fonts/truetype/dejavu/DejaVuSans-Bold.ttf",
"/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf",
):
try:
return ImageFont.truetype(path, size)
except OSError:
pass
return ImageFont.load_default()
def parse_args() -> argparse.Namespace:
parser = argparse.ArgumentParser(description="RDK X5 ST7789 bouncing-ball animation")
parser.add_argument("--fps", type=float, default=30.0)
parser.add_argument("--bus", type=int, default=1)
parser.add_argument("--device", type=int, default=1)
parser.add_argument("--width", type=int, default=240)
parser.add_argument("--height", type=int, default=320)
parser.add_argument("--dc", type=int, default=22)
parser.add_argument("--rst", type=int, default=31)
parser.add_argument("--bl", type=int, default=33)
parser.add_argument("--no-bl", action="store_true")
parser.add_argument("--x-offset", type=int, default=0)
parser.add_argument("--y-offset", type=int, default=0)
parser.add_argument("--speed", type=int, default=24_000_000)
parser.add_argument("--spi-mode", type=int, default=0, choices=(0, 1, 2, 3), help="SPI mode. Try 3 if the screen shows tearing/garbled output.")
parser.add_argument("--rotation", type=int, default=0, choices=(0, 90, 180, 270))
parser.add_argument("--bgr", action="store_true", help="Clear BGR bit if red/blue appear swapped.")
parser.add_argument("--invert", action="store_true", help="Enable display color inversion (0x21). Toggle if colors appear inverted.")
parser.add_argument("--image",type=str,default=None,help="image path")
return parser.parse_args()
def make_frame(
width: int,
height: int,
*,
ball_x: float,
ball_y: float,
ball_r: int,
hue: float,
frame_idx: int,
) -> Image.Image:
image = Image.new("RGB", (width, height), (12, 16, 24))
draw = ImageDraw.Draw(image)
for y in range(height):
t = y / max(1, height - 1)
shade = int(18 + 20 * t)
draw.line([(0, y), (width - 1, y)], fill=(shade, shade + 4, shade + 10))
ground_y = height - 36
draw.rectangle((0, ground_y, width - 1, height - 1), fill=(28, 32, 40))
draw.line((0, ground_y, width - 1, ground_y), fill=(70, 78, 92), width=1)
title_font = load_font(22)
small_font = load_font(14)
pulse = 0.5 + 0.5 * math.sin(frame_idx * 0.12)
title_color = (int(80 + 120 * pulse), int(180 + 60 * pulse), 255)
draw.text((14, 12), "RDK X5 LCD", font=title_font, fill=title_color)
draw.text((14, 40), "SPI Animation Demo", font=small_font, fill=(150, 170, 200))
draw.text((14, height - 22), time.strftime("%H:%M:%S"), font=small_font, fill=(120, 140, 170))
r = int(127 + 127 * math.sin(hue))
g = int(127 + 127 * math.sin(hue + 2.1))
b = int(127 + 127 * math.sin(hue + 4.2))
shadow_w = int(ball_r * 1.6)
shadow_h = max(6, ball_r // 3)
shadow_x = int(ball_x - shadow_w / 2)
shadow_y = ground_y - shadow_h // 2
draw.ellipse(
(shadow_x, shadow_y, shadow_x + shadow_w, shadow_y + shadow_h),
fill=(10, 12, 16),
)
x0, y0 = int(ball_x - ball_r), int(ball_y - ball_r)
x1, y1 = int(ball_x + ball_r), int(ball_y + ball_r)
draw.ellipse((x0, y0, x1, y1), fill=(r, g, b), outline=(255, 255, 255), width=2)
return image
def main() -> int:
args = parse_args()
lcd = ST7789(
bus=args.bus,
device=args.device,
width=args.width,
height=args.height,
dc_pin=args.dc,
rst_pin=args.rst,
bl_pin=None if args.no_bl else args.bl,
x_offset=args.x_offset,
y_offset=args.y_offset,
speed_hz=args.speed,
spi_mode=args.spi_mode,
rotation=args.rotation,
bgr=args.bgr,
invert=args.invert,
)
margin = 24
ball_r = 18
x = float(args.width // 2)
y = float(margin + ball_r)
vx = 2.6
vy = 0.0
gravity = 0.35
ground = args.height - 36 - ball_r
delay = 1.0 / max(1.0, args.fps)
frame_idx = 0
try:
lcd.init()
print("Animation running. Press Ctrl+C to stop.")
# ==== 颜色自检（默认注释，仅在排查色差问题时取消注释）====
# 依次显示红、绿、蓝三种纯色，用于判断各颜色通道是否正常。
# for color in ((255, 0, 0), (0, 255, 0), (0, 0, 255)):
# solid = Image.new("RGB", (args.width, args.height), color)
# lcd.show(solid)
# time.sleep(2)
# ====================================================
if(args.image == None):
while True:
t0 = time.time()
vy += gravity
x += vx
y += vy
if x - ball_r < margin:
x = margin + ball_r
vx = abs(vx)
elif x + ball_r > args.width - margin:
x = args.width - margin - ball_r
vx = -abs(vx)
if y + ball_r >= ground:
y = ground
vy = -abs(vy) * 0.82
if abs(vy) < 1.2:
vy = -6.0
frame = make_frame(
args.width,
args.height,
ball_x=x,
ball_y=y,
ball_r=ball_r,
hue=frame_idx * 0.08,
frame_idx=frame_idx,
)
lcd.show(frame)
frame_idx += 1
elapsed = time.time() - t0
sleep_time = delay - elapsed
if sleep_time > 0:
time.sleep(sleep_time)
else:
image = load_image(
args.image,
args.width,
args.height
)
lcd.show(image)
time.sleep(5)
except KeyboardInterrupt:
print("Stopped.")
finally:
lcd.close()
return 0
if __name__ == "__main__":
raise SystemExit(main())
运行案例
使用以下命令运行案例代码：
#运行后屏幕展示动画，小球在屏幕中运动
python3 spi_display.py
#运行后屏幕显示所提供的图片
python3 spi_display.py --image xxxx.jpg
颜色显示异常排查
不同型号的 SPI 屏幕对颜色反相、SPI Mode 和时钟频率的要求可能不同，直接沿用本示例的默认配置可能导致显示颜色与原图不一致或出现花屏。遇到显示异常时，请按下述方法排查。
颜色自检
普通图片包含多种颜色，难以直接判断颜色通道是否正常。建议依次显示红、绿、蓝三种纯色，明确判断各颜色通道是否正常。本示例代码在 lcd.init() 之后内置了纯色自检逻辑（默认注释），排查颜色问题时取消注释即可：
# 依次显示红、绿、蓝三种纯色
for color in ((255, 0, 0), (0, 255, 0), (0, 0, 255)):
solid = Image.new("RGB", (args.width, args.height), color)
lcd.show(solid)
time.sleep(2)
排查顺序
- 颜色偏色（如红色显示为青色）：颜色反相配置不正确。使用
--invert参数切换反相开关，对比开启与关闭时的纯色显示结果，选择与本机屏幕匹配的配置；若红色与蓝色互换（而非反相），则使用--bgr参数。 - 花屏或局部图像错乱：按下述顺序排查。
不同屏幕型号可能需要不同配置，请勿将单一参数作为所有屏幕的固定设置。
