Gesture Interaction

This feature integrates D-Robotics' gesture recognition algorithm to enable interaction with the RDK X5 Magicbox through hand gestures.

Repository Links

• Gesture Interaction: https://github.com/D-Robotics/magicbox_gesture_interaction
• Camera Functionality: https://github.com/D-Robotics/magicbox_mipi_cam
• Human Detection: https://github.com/D-Robotics/mono2d_body_detection
• Hand Keypoint Detection: https://github.com/D-Robotics/hand_lmk_detection
• Gesture Recognition: https://github.com/D-Robotics/hand_gesture_detection
• Web Rendering: https://github.com/D-Robotics/hobot_websocket
• Model Inference Library: https://github.com/D-Robotics/hobot_dnn/tree/magicbox-v1.0.0
• Servo Control Library: https://github.com/D-Robotics/magicbox_servo_control
• Lighting Control Library: https://github.com/D-Robotics/magicbox_lighting_control

IP Address Explanation

• When configuring the network via Flash Connection, the IP is http://192.168.128.10.
• When configuring the network via Ethernet, the IP is http://192.168.127.10.

Model Information

Function	Model	Input Size	Inference Frame Rate (fps)
Human Detection	fastrcnn	1x3x544x960	125.21
Hand Keypoint Detection	handLMKs	8x21	948
Gesture Recognition	gestureDet	8x21	1252.44

Hand Gestures and Trigger Actions

Gesture	Hand Movement	Trigger Action
ThumbUp	Thumbs up	Rocking arm shakes
Victory	"V" gesture	Rocking arm lifts
ThumbLeft	Thumb pointing left	Raise left rocking arm
ThumbRight	Thumb pointing right	Raise right rocking arm
Okay	OK gesture	Light flashes

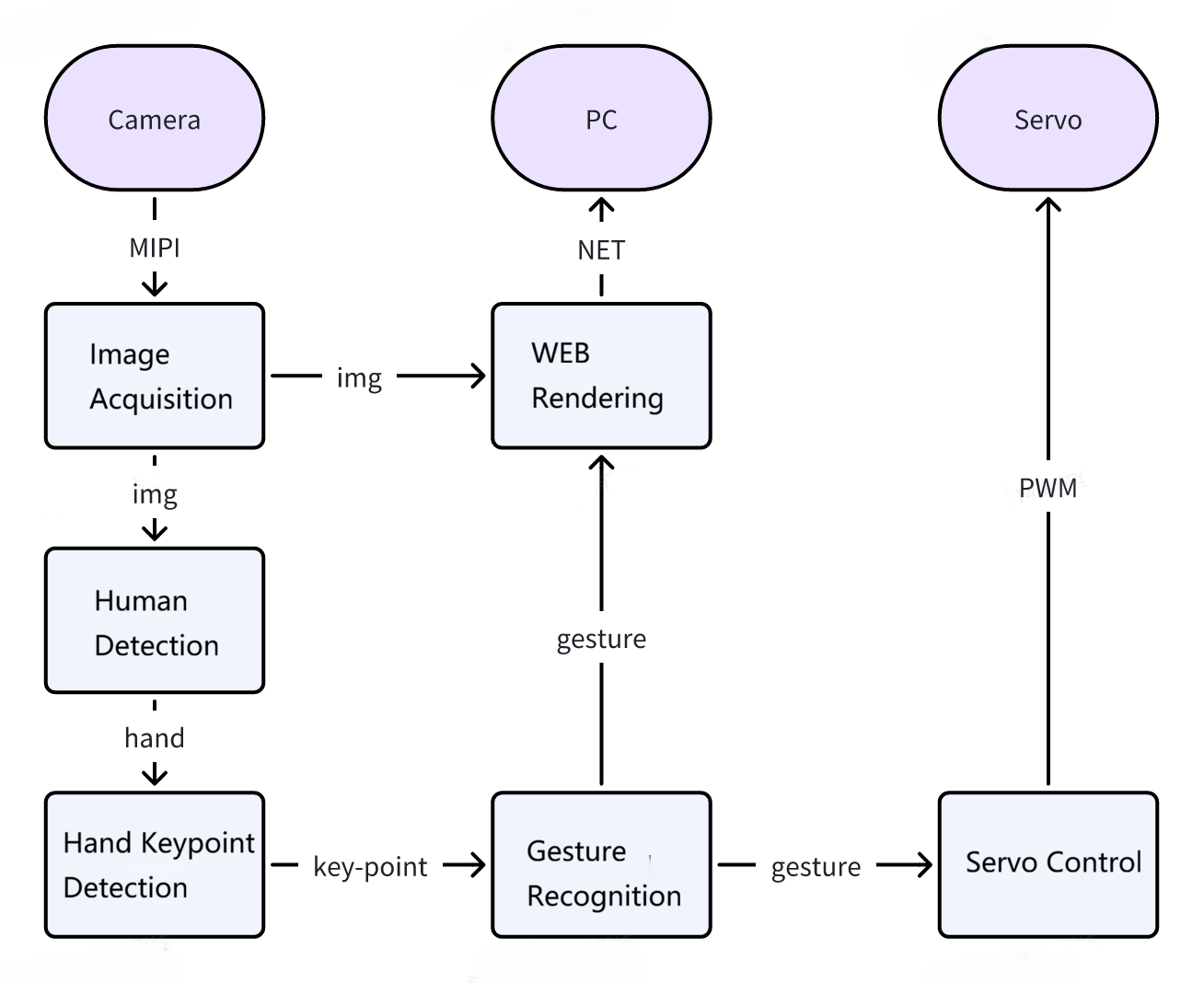

Functional Architecture Diagram

Startup Steps

1. Use the following command to start the gesture interaction feature.

     cd /userdata/magicbox
     source /opt/tros/humble/setup.bash
     source app/ros_ws/install/setup.bash
     ros2 launch gesture_interaction gesture_interaction.launch.py

2. Access [IP]:8000 via a web browser to view the gesture interaction results.



Reference Materials

User Manual: Gesture Recognition
