9.5.2. hrt_model_exec Tool Introduction

9.5.2.1. Tool Introduction

hrt_model_exec is a model execution tool that can evaluate the inference performance of the model and get the model information directly on the development board.

On one hand, it allows the user to get a realistic understanding of the model’s real performance; On the other hand, it also helps the user to learn the speed limit that the model can achieve, which is useful information in application tuning.

hrt_model_exec provides three types of functions including model inference infer, model performance analysis perf and viewing model information model_info, respectively, as shown in the following table:

No.	Subcommand	Description
1	model_info	Obtain model information, such as model input and output information, etc.
2	infer	Perform model inference and obtain model inference results.
3	perf	Perform model performance analysis and obtain performance analysis results.

The tool can view the tool’s dnn prediction library version number with the -v or --version commands.

hrt_model_exec -v
hrt_model_exec --version

9.5.2.2. Description of Input Parameters

NO.	PARAMETER	TYPE	DESCRIPTIONS
1	model_file	string	Model file path, multiple paths can be separated by commas.
2	model_name	string	Specify the name of a model in the model.
3	core_id	int	Specify the running core, 0 means arbitrary core, 1 means core0, 2 means core1; default 0.
4	input_file	string	Model input information. The input of the image type, it must have one of the following file name suffixes: bin / JPG / JPEG / jpg / jpeg / png / PNG , the input suffix name of the feature must be one of bin / txt . The inputs should be separated by commas ,, such as xxx.jpg,input.txt . It is recommended to use specified data to perf, when the model contains operators that require input data, such as: Gather op, which the index input needs to meet a certain range.
5	roi_infer	bool	Enables resizer model inference. If the model has input from the resizer input source, it needs to be set to true, and the input_file and roi parameters corresponding to the input source must be configured.
6	roi	string	Specify the roi region required for resizer model inference, multiple ROIs are separated by English semicolons. For example: –roi=”2,4,123,125;6,8,111,113”
7	frame_count	int	The number of running frames of the execution model.
8	dump_intermediate	string	dump model each layer of input and output. When dump_intermediate=0, the dump function is turned off by default. When dump_intermediate=1, the input and output data of each node layer in the model are saved as bin, where the BPU node outputs aligned data. When dump_intermediate=2, the input and output data of each node layer in the model are saved as bin and txt, where the output of the BPU node is aligned data. When dump_intermediate=3, the input and output data of each node layer in the model are saved as bin and txt, where the output of the BPU node is valid data.
9	enable_dump	bool	Enables dump model input and output, defaults to false.
10	dump_precision	int	Controls the number of decimal places of the float type data output in txt format, default is 9.
11	hybrid_dequantize_process	bool	Post-process the original output and save it. It takes effect when enable_dump=true and only supports four-dimensional models. Post-processing includes dequantizing the fixed-point output and removing padding.
12	dump_format	string	The format of the dump model input and output.
13	dump_txt_axis	int	Control line feed rules for txt format input and output.
14	enable_cls_post_process	bool	Enables classification post-processing, defaults to false. Used when the subcommand is infer. Currently, it only supports post-processing of the ptq classification model and printing of classification results.
15	perf_time	int	Execution model runtime.
16	profile_path	string	Statistical tool log generation path, run to generate profiler.log and profiler.csv, analyze op time and scheduling time consumption. Generally, just set --profile_path=".", which means the log file will be generated in the current directory.
17	thread_num	int	Number of threads (parallelism), the value can indicate how many tasks are processed in parallel at most. When testing latency, the value needs to be set to 1 to avoid resource preemption and get more accurate latency. When testing throughput, it is recommended to set >2 (number of BPU cores) to adjust the number of threads so that the BPU utilization is as high as possible, and the throughput test is more accurate.
18	dump_path	string	Tool dump output file path, enable_dump or dump_intermediate will generate output files. After specifying the path, files will be dump to the specified path. If the path does not exist, the tool will automatically create it.

After setting the profile_path parameter and the tool runs normally, profiler.log and profiler.csv files will be generated. The files include the following parameters:

• perf_result: Record perf results.

  PARAMETER	DESCRIPTIONS
  FPS	Frames processed per second.
  average_latency	The average time it takes to run a frame.

• running_condition: Operating environment information.

  PARAMETER	DESCRIPTIONS
  core_id	The bpu core set by the program running.
  frame_count	The total number of frames the program runs.
  model_name	The name of the evaluation model.
  run_time	Program running time.
  thread_num	The number of threads the program runs on.

• model_latency: Model node time consumption statistics

  PARAMETER	DESCRIPTIONS
  Preprocess	Model pre-processing takes time: DNN internal processing of input data, including padding, layout conversion, etc.
  BPU_NodeName	Time-consuming information of BPU nodes. Note: NodeName is the specific node name.
  CPUNodeType_NodeName	Time-consuming information of CPU nodes. Note: CPUNodeType is a specific node type, such as Dequantize, and NodeName is a specific node name.

• processor_latency: Model processor time consumption statistics.

  PARAMETER	DESCRIPTIONS
  BPU_inference_time_cost	Inferencing BPU processor time per frame.
  CPU_inference_time_cost	Inference CPU processor time per frame.

• task_latency: Model task time-consuming statistics.

  PARAMETER	DESCRIPTIONS
  TaskPendingTime	Task queuing takes time. Note: Submitted tasks may be queued and will not run immediately.
  TaskRunningTime	The actual running time of the task includes the time consumed by the DNN framework.

9.5.2.3. Usage Instructions

This tool provides three types of functions: model information acquisition, single-frame inference function, and multi-frame performance evaluation.

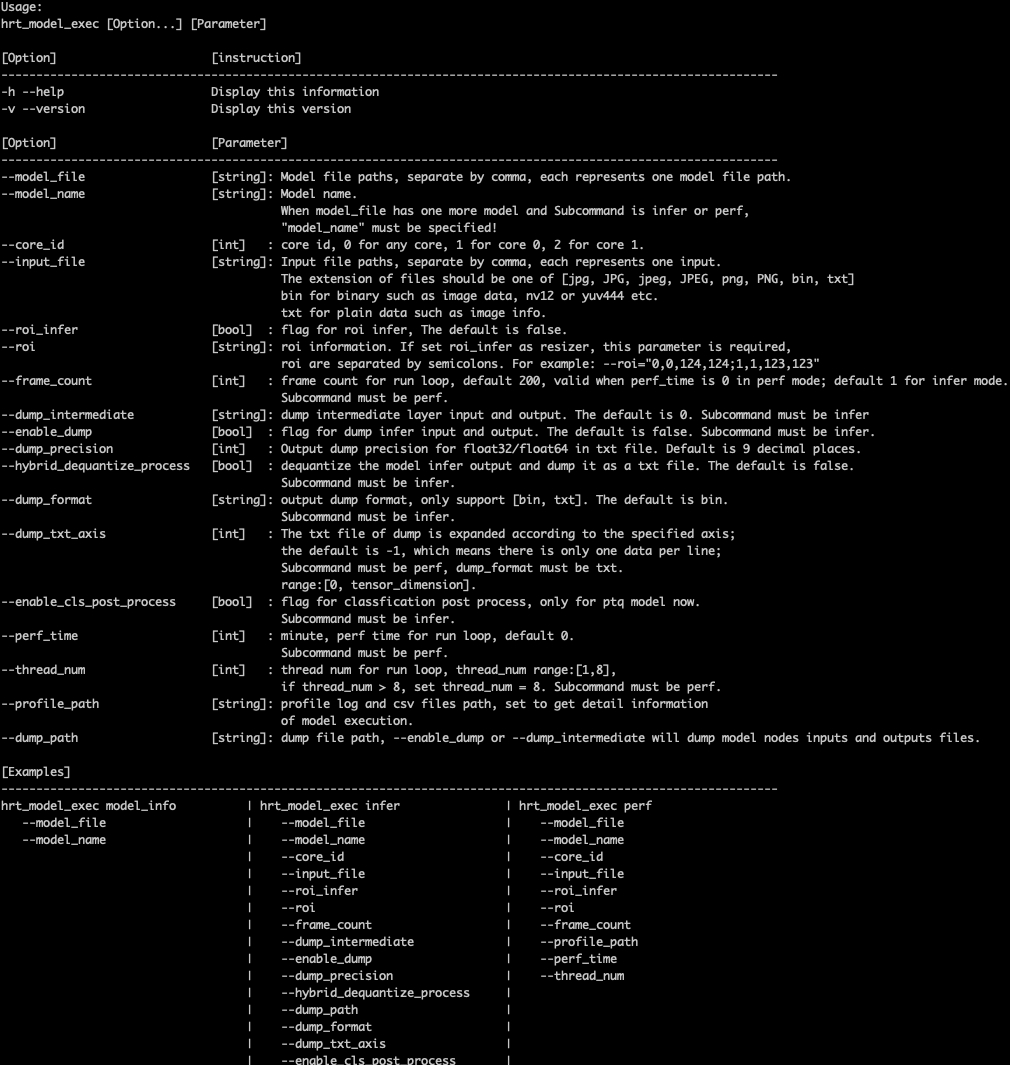

Run hrt_model_exec, hrt_model_exec -h, or hrt_model_exec --help for tool usage details, as shown in the following figure:

9.5.2.3.1. model_info

9.5.2.3.1.1. Overview

This parameter is used to get the model information, supporting both QAT and PTQ models. This parameter is used together with model_file to get detailed information about the model, including model input and output information hbDNNTensorProperties.

If model_name is not specified, all the models in the model are outputted. If model_name is specified, only the information of the corresponding model is outputted.

9.5.2.3.1.2. Example

1.Single Model

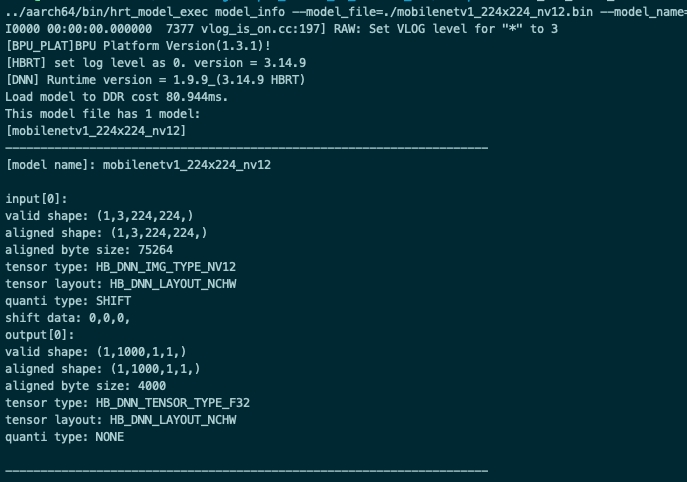

hrt_model_exec model_info --model_file=xxx.bin

2.Multi-model (output all model information)

hrt_model_exec model_info --model_file=xxx.bin,xxx.bin

3.Multi-model - pack model (output specified model information)

hrt_model_exec model_info --model_file=xxx.bin --model_name=xx

9.5.2.3.2. infer

9.5.2.3.2.1. Overview

This parameter is used for model inference, where the input images are defined by user and one frame is inferred. This parameter should be used together with input_file to specify the input image path, and the tool resizes the image according to the model information and organizes the model input information.

The program runs a single frame of data in a single thread and outputs the time of the model execution.

9.5.2.3.2.2. Example

1.Single Model

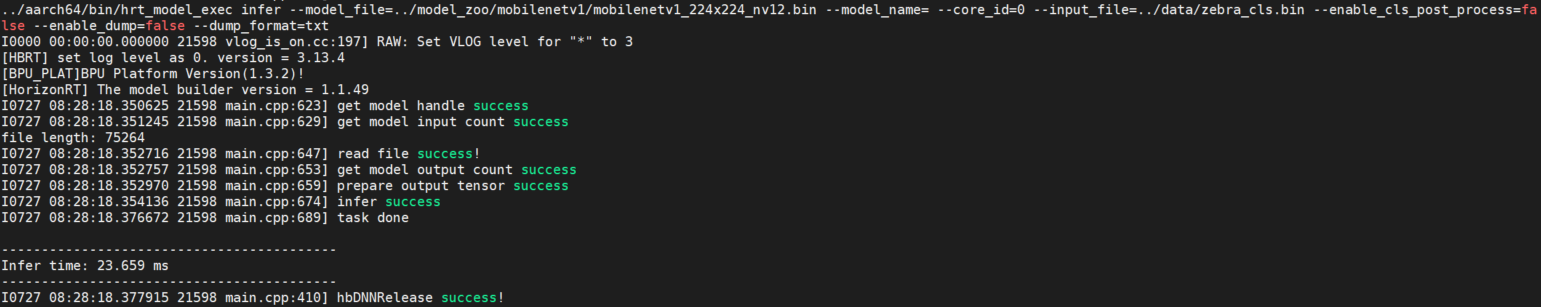

hrt_model_exec infer --model_file=xxx.bin --input_file=xxx.jpg

2.Multi-model

hrt_model_exec infer --model_file=xxx.bin,xxx.bin --model_name=xx --input_file=xxx.jpg

3.Resizer Model

The model has three inputs, and the input source order is [ddr, resizer, resizer].

Infer data form two frames, suppose the input of the first frame is [xx0.bin, xx1.jpg, xx2.jpg], roi is [2,4,123,125;6,8,111,113], the input of the second frame is [xx3.bin, xx4.jpg, xx5.jpg], roi is [27,46,143,195;16,28,131,183], then the inference command is as follows:

hrt_model_exec infer --roi_infer=true --model_file=xxx.bin --input_file="xx0.bin,xx1.jpg,xx2.jpg,xx3.bin,xx4.jpg,xx5.jpg"  --roi="2,4,123,125;6,8,111,113;27,46,143,195;16,28,131,183"

Note

Note that you should use commas to separate the multiple frame inputs, and use semicolons to separate the rois.

9.5.2.3.2.3. Optional Parameters

PARAMETER	DESCRIPTION
core_id	Specifies the core ID for model inference.
roi_infer	Enables resizer model inference.
roi	Effective when roi_infer is true. Set the roi region required for resizer model inference.
frame_count	Sets the number of frames to run infer. Single frame repeated inference, can be used together with enable_dump to verify output consistency, defaults to 1.
dump_intermediate	Dumps the input+output data of each model layer, default is 0.
enable_dump	Dumps the input and output data of the model, defaults to false.
dump_precision	Controls the number of decimal places in the txt format to output float data, default is 9.
hybrid_dequantize_process	Controls the output of float type data in txt format. Dequantizes the fixed-point output, currently only supports 4-D models.
dump_format	Type of dump model output file, with optional parameters bin or txt, default is bin.
dump_txt_axis	Line wrapping rule for txt format output of dump model. If output dimension = n, then parameter range: [0, n], defaults to -1, which means one data per row.
enable_cls_post_process	Enables classification post-processing, currently only supports PTQ classification model, defaults to false.
dump_path	Specify the dump output path, which defaults to the current path.

9.5.2.3.3. perf

9.5.2.3.3.1. Overview

This parameter is used to test the model performance.

In this mode, the user does not need to input data, and the program automatically constructs the input tensor according to the model, and the tensor data are random numbers.

By default, the program runs 200 frames of data in a single thread. When perf_time is specified, frame_count is disabled, and the program will run for the specified period of time and then exit.

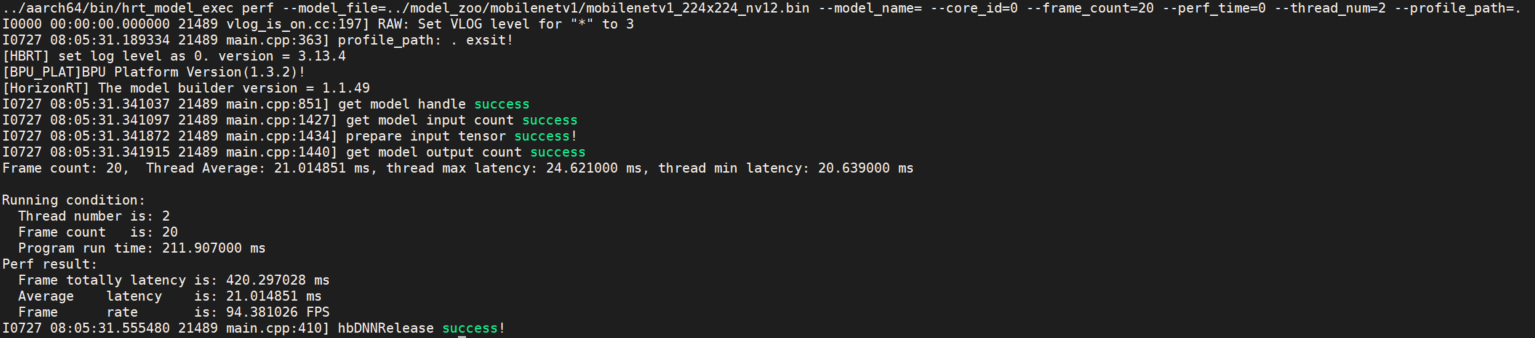

Outputs the latency and the frame rate of the model. The program prints the performance information every 200 frames: max, min, and average values of latency. If <200 frames, prints once before the programs ends.

The program finally outputs the running-related data, including number of program threads, number of frames, total model inference time, average latency of model inference, and frame rate.

9.5.2.3.3.2. Example

1.Single Model

hrt_model_exec perf --model_file=xxx.bin

2.Multi-model

hrt_model_exec perf --model_file=xxx.bin,xxx.bin --model_name=xx

3.Resizer Model

The model has three inputs, and the input source order is [ddr, resizer, resizer].

Infer data from two frames at a time, suppose the input of the first frame is [xx0.bin, xx1.jpg, xx2.jpg], the roi is [2,4,123,125;6,8,111,113], and the input of the second frame is [xx3.bin, xx4.jpg ,xx5.jpg], roi is [27,46,143,195;16,28,131,183], then the perf command is as follows:

hrt_model_exec perf --roi_infer=true --model_file=xxx.bin --input_file="xx0.bin,xx1.jpg,xx2.jpg,xx3.bin,xx4.jpg,xx5.jpg"   --roi="2,4,123,125;6,8,111,113;27,46,143,195;16,28,131,183"

Note

Note that you should use commas to separate the multiple frame inputs, and use semicolons to separate the rois.

9.5.2.3.3.3. Optional Parameters

PARAMETER	DESCRIPTIONS
core_id	Specify the core id for model inference.
input_file	Model input information, multiple can be separated by commas.
roi_infer	Enables resizer model inference, If the model contains resizer input source, set it to true, default is fasle.
roi	Effective when roi_infer is true, Set the roi region required for resizer model inference to be split by semicolon.
frame_count	Set perf the number of frames to run, takes effect when perf_time is 0, default value 200.
perf_time	Set perf runtime in minutes, default value 0.
thread_num	Set the number of threads to run, range [1, 8], default 1, if set to more than 8, it will be treated as 8 threads.
profile_path	Statistical tool log generation path, run to generate profiler.log and profiler.csv, analyze op time and scheduling time consumption.

9.5.2.3.4. Multi-threaded Latency Data Description

The purpose of multi-threading is to make full use of BPU resources, with multiple threads working together to process frame_count frame data or execute perf_time until data processing is complete/execution time is over and program ends.

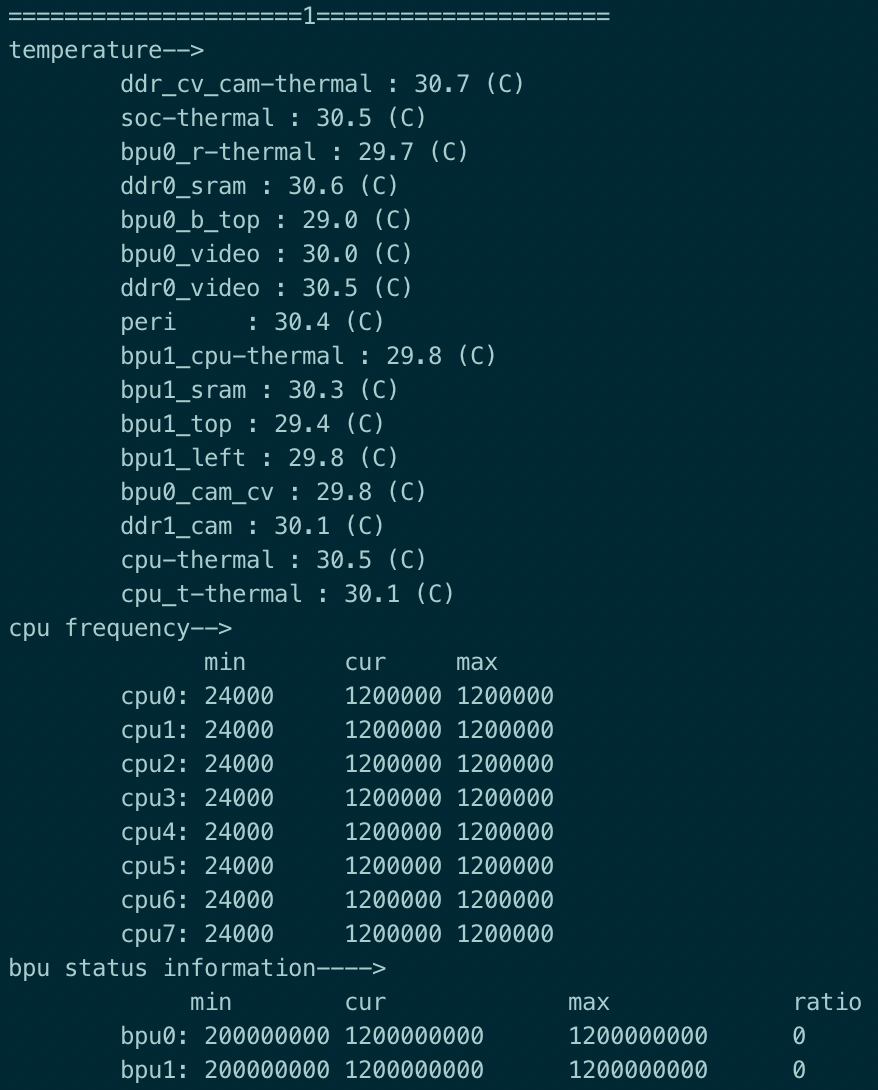

The following commands can be executed during the multithreaded perf process to get the BPU resource occupancy in real time.

hrut_somstatus -n 10000 -d 1

The output is shown in the following screenshot.

Note

In the perf mode, the latency time of a single thread indicates the measured on-board performance of the model, while the latency data for multi-threaded threads represents the model single-frame processing time for each thread, which takes longer compared to single-threaded, but the overall processing time of multi-threaded is reduced and its frame rate is improved.

9.5.2.3.5. Multi-input Model Description

The tool infer supports inference for multiple input models, supporting image input, binary file input, and text file input, with input data separated by commas. The model input information can be viewed via model_info.

Example:

hrt_model_exec infer --model_file=xxx.bin --input_file=xxx.jpg,input.txt

9.5.2.4. FAQ

9.5.2.4.1. How are Latency and FPS data calculated?

Latency refers to the average time spent by a single-process inference model, which focuses on the average time-consuming inference on one frame when the resources are sufficient.

In on-board running situation, it is represented as the statistics of single-core and single-thread if it is running on-board.

The pseudo code of the statistical method is as follows:

// Load model and prepare input and output tensor
...

// Loop run inference and get latency
{
  int32_t const loop_num{1000};
  start = std::chrono::steady_clock::now();
  for(int32_t i = 0; i < loop_num; i++){
      hbDNNInferCtrlParam infer_ctrl_param;
      HB_DNN_INITIALIZE_INFER_CTRL_PARAM(&infer_ctrl_param);
      hbDNNInfer(&task_handle,
                &output,
                input_tensors.data(),
                dnn_handle,
                &infer_ctrl_param);
      // wait task done
      hbDNNWaitTaskDone(task_handle, 0);
      // release task handle
      hbDNNReleaseTask(task_handle);
      task_handle = nullptr;
  }
  end = std::chrono::steady_clock::now();
  latency = (end - start) / loop_num;
}

// release tensor and model
...

FPS refers to the average number of frames per second of model inference performed by multiple processes at the same time, which focuses on the throughput of the model when fully utilizing the resources.

In on-board running situation, it is represented as single-core and multi-threaded. The statistical method is to perform the model inference by initiating multiple threads at the same time and calculate the total number of frames of the inference in average 1 second.

9.5.2.4.2. Why is the FPS estimated by Latency inconsistent with the FPS measured by the tool?

Latency and FPS are different in statistical scenarios. Latency is single-process (single-core, single-thread) inference, and FPS is multi-process (single-core, multi-thread) inference, so the calculation is different. If the number of processes (threads) is set to 1 when counting the FPS, then the FPS estimated by Latency is consistent with the measured one.

9.5.2.4.3. How to run model with custom op?

Develop custom operators by referring to the custom_identity example in basicsample. Compile the custom operators into a dynamic library and specify the path to the dynamic library before using the tool. For example, the dynamic library path is:/userdata/plugins/libplugin. so. The tool runs a model containing this custom operator, and only needs to specify the path where the dynamic library is located.

export HB_DNN_PLUGIN_PATH=/userdata/plugins/
