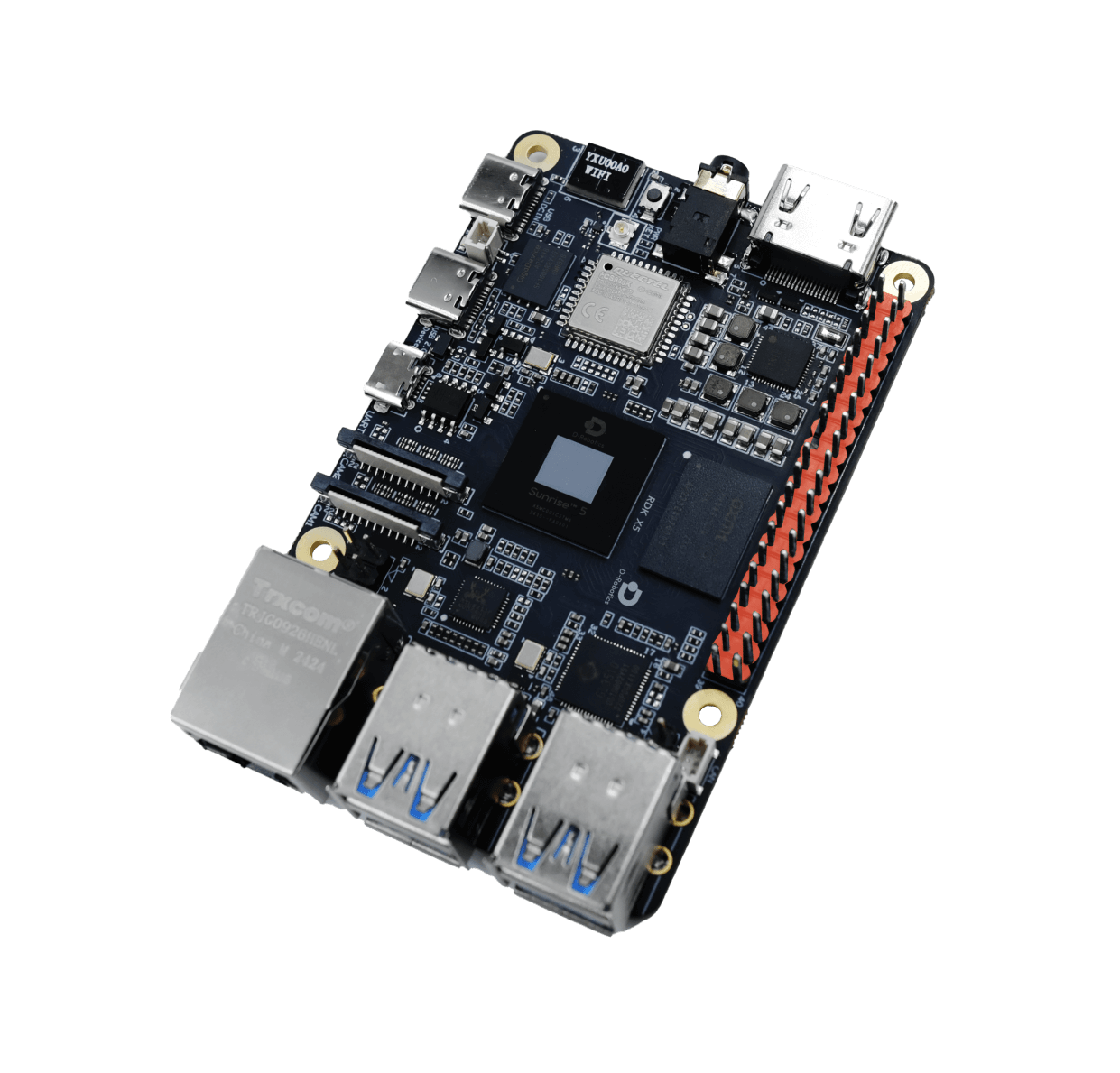

RDK™ X5 Robot Development Kit

RDK™ X5Robot Development Kit

Powered by the Sunrise 5 intelligent computing chip, the RDK X5 delivers up to 10 TOPS of AI performance. It is an all-in-one development platform designed for intelligent computing and robotics applications, enabling rapid deployment of next-generation intelligent solutions.

Super Powerful Computing Power Boost

From CPU to BPU, a comprehensive performance leap significantly enhances the execution speed of intelligent algorithms, providing exceptional computational support for robots.

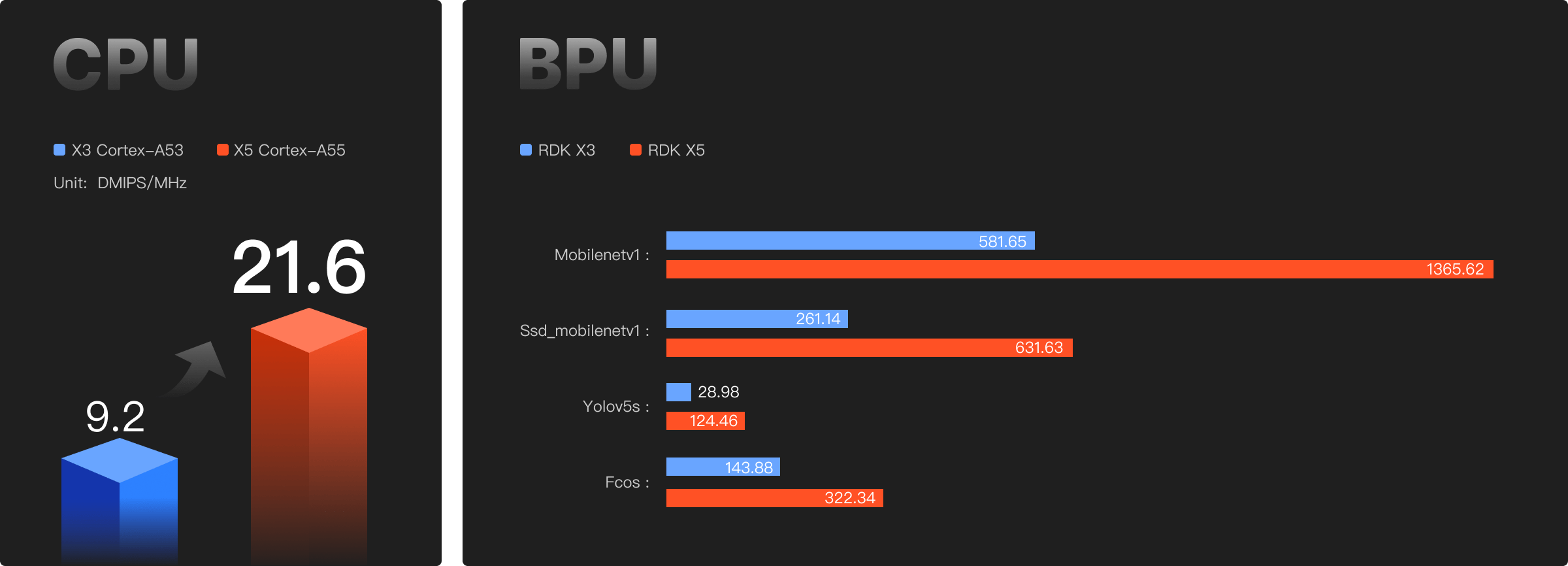

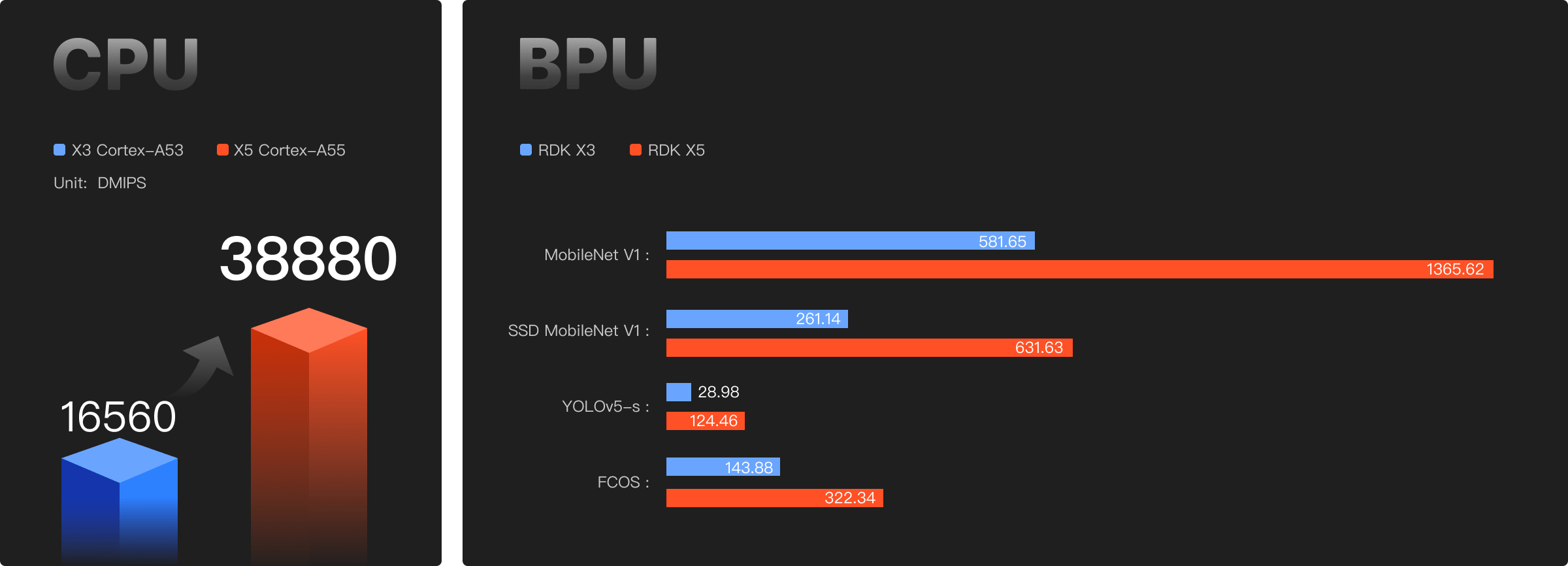

RDK X5 computing power comparison chart, showing the performance improvement curve from CPU to BPU

Rich Interfaces, User-Friendly

POE Power Supply

Easier solution integration

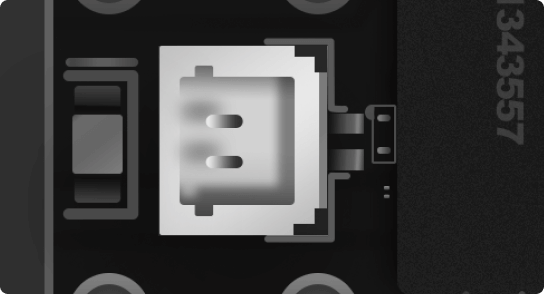

Real-time clock

Precise time synchronization

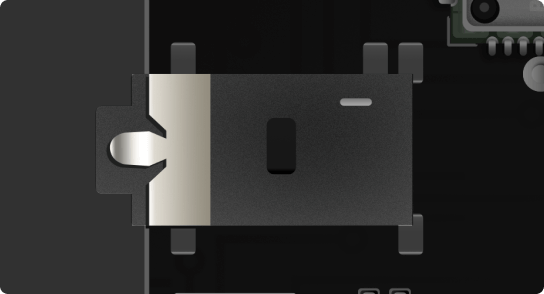

Multi - standard compatible headphone jack diagram, supports integrated audio and video, helping to create multi - mode applications

Multi-standard compatible headset

Audio-visual integration for multi-modal applications

CAN FD high-speed interface

Helping robots quickly deploy

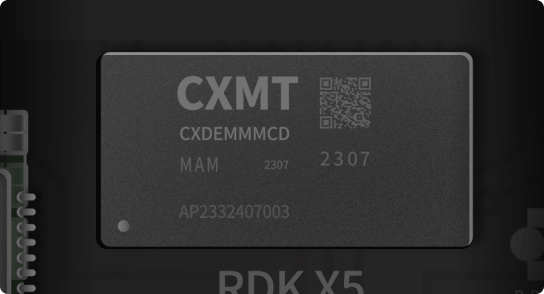

4/8G RAM

Multiple memory models to choose from

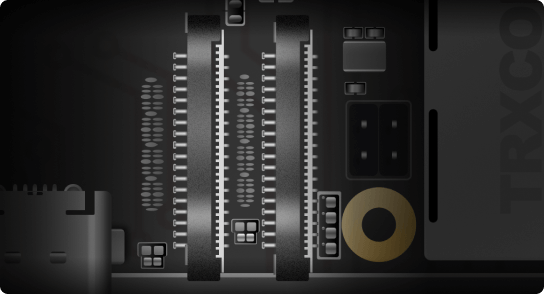

Dual MIPI Input Interface Diagram, supports binocular algorithms and enables seamless compatibility.

Dual MIPI inputs

Seamless compatibility with stereo algorithms

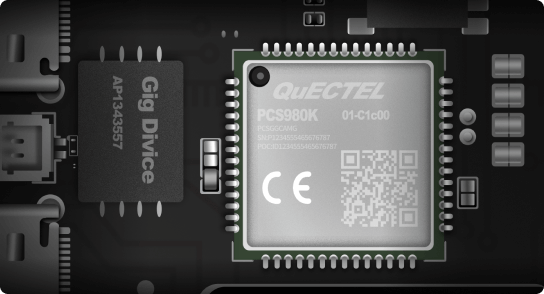

Wi-Fi 6 & Bluetooth 5.4

Lightning-Fast Connectivity

Debug serial port

Convenient to use, no waiting required

Driving Innovation for the Age of Robotics

Empowering robotics with intelligent, precise, and efficient algorithms.

Keypoint detection and matching based on deep learning

Enhances motion estimation accuracy and robustness in challenging conditions like backlighting, low light, and weak textures.

Deep Learning Optical Flow Estimation

Delivers precise pixel-level correspondences, outperforming traditional dense optical flow algorithms in performance, robustness, and efficiency.

Stereo Depth Estimation Algorithm

Delivers high-precision distance measurements with under 1% error across a 10-meter range.

Occupancy

Offers precise 3D geometry and semantic information for obstacle avoidance and local path planning, ensuring greater consistency.

Innovative Flash Connect
Development Paradigm

A single Type-C cable covers the entire process from system programming to advanced development, boosting efficiency and unlocking the full potential of the RDK X5.

200+ Open-source Algorithms and Application Acceleration Solutions Deployment

NodeHub provides everything needed for robot development — from sensors and algorithms to application examples — while RDK X5 algorithm solutions deliver advanced, cutting-edge technologies.

Specifications

RDK X5

RDK X5 Module

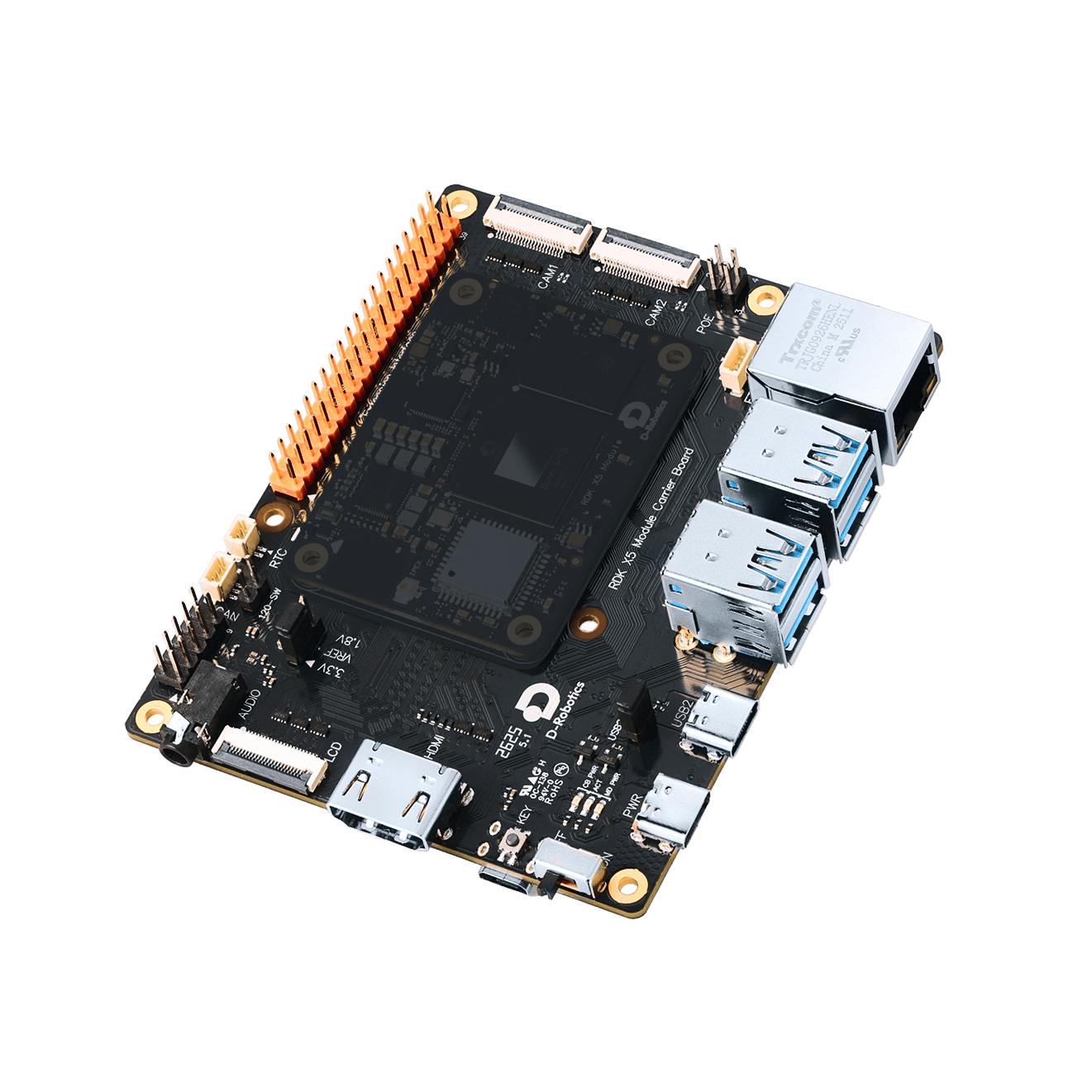

RDK X5 Carrier Board

· CPU8x A55@1.5GHz

· RAM4GB/8GB LPDDR4

· BPU10 TOPS

· GPU32Gflops

· StorageNA, supports external Micro SD card Peripheral

· MultimediaH.265 (HEVC) Main Profile @ L5.1, H.264 (AVC) Baseline/Constrained Baseline/Main/High Profiles @ L5.2 with SVC-T encoding, H.265/H.264 encoding and decoding up to 3840x2160@60fps

· Audio1 x 3.5mm headphone jack audio input/output

· Camera2 x 4-lane MIPI CSI

· Display1 x HDMI Type-A port supporting up to 1080p60

· Display1 x MIPI DSI 4 Lane

· USB Host4 x USB 3.0 HOST interfaces（TYPE A）

· USB Device1 x USB 2.0 Device interface（TYPE C）

· Debug Uart1 x Debug serial port（Micro USB）

· Networking1 x Gigabit Ethernet RJ45 port with PoE

· Wireless networkWi-Fi 6 & Bluetooth 5.4

· CAN1 x CAN FD

· Other I/O28 GPIOs (Reusable support 5 x UART, 8 x PWM, 3 x I2C, 2 x SPI, 1 x I2S)

· Power input5V/5A
